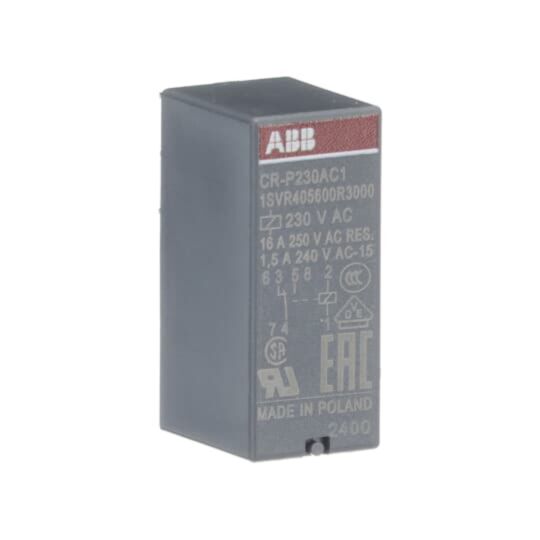

ABB CR-P230AC1 Pluggable Relay 1C/O 230VAC
MPN: 1SVR405600R3000
Alt. SKU: CR-P230AC1
Special Price
£5.64
£4.70
Regular Price
£8.68
Why Choose the CR-P230AC1 [1SVR405600R3000]
The CR-P230AC1 pluggable interface relay is suitable for direct mounting on a printed circuit board or use in conjunction with ABB's sockets. This relay operates with a 230 V AC rated control supply voltage and has a 1 c/o (SPDT) output with contacts rated at 250 V / 16 A, enabling the possibility of switching multiple circuits with a single input signal. Coupled with a socket, the compact size of this relay offers possibilities to save space within a control panel. Furthermore, with an IP degree of 67, this relay offers complete protection against ingress of dust and airborne particles & protection against water and liquids, up to and including immersion in up to one meter of water. Standard sockets, logical sockets, pluggable function modules, holder and marker are available as accessories.
Technical Specification
- Function: Pluggable PCB interface relay, 1 C/O (SPDT) contact.
- Control Supply Voltage: 230 V AC rated.
- Operational Voltage: Up to 400 V AC.
- Contact Ratings: 250 V, 16 A (AC-12); 3 A (120 V AC-15); 2.5 A (24 V DC-13).
- Terminal Type: Soldering pins for PCB mounting.
- Degree of Protection: IP67, dust tight and waterproof to immersion.
- Insulation Voltage: Rated up to 400 V.
- Mounting: Direct PCB mounting or via ABB sockets.
- Standards Compliance: IEC/EN 61810-1, UL94 flammability V-0.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated control supply voltage for the CR-P230AC1 relay?
The rated control supply voltage for the CR-P230AC1 relay is 230 V AC.
What type of output does the CR-P230AC1 relay have?
The relay has a 1 c/o (SPDT) output with contacts rated at 250 V / 16 A.
What is the degree of protection for the CR-P230AC1 relay?
The relay has an IP67 rating, providing complete protection against dust and immersion in water up to one metre.
Can the CR-P230AC1 relay be mounted directly on a PCB?
Yes, the relay can be directly mounted on a printed circuit board.
What accessories are available for the CR-P230AC1 relay?
Standard sockets, logical sockets, pluggable function modules, holders, and markers are available as accessories.
What is the maximum operational voltage for the CR-P230AC1 relay?
The maximum operational voltage for the relay is up to 400 V AC.
What standards does the CR-P230AC1 relay comply with?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 1SVR405600R3000 |
|---|---|
| Manufacturer | ABB |
| Packed Quantity | 1 |
| HS Code | 85364900 |
| Amperage | 16A |
| Number of Poles | 1 Pole |
| Product Lead Time | Please contact us for a delivery time |
| Barcode | 4013614498169 |
| Country of Manufacture | Poland |
| Alternative Product SKU | CR-P230AC1 |
