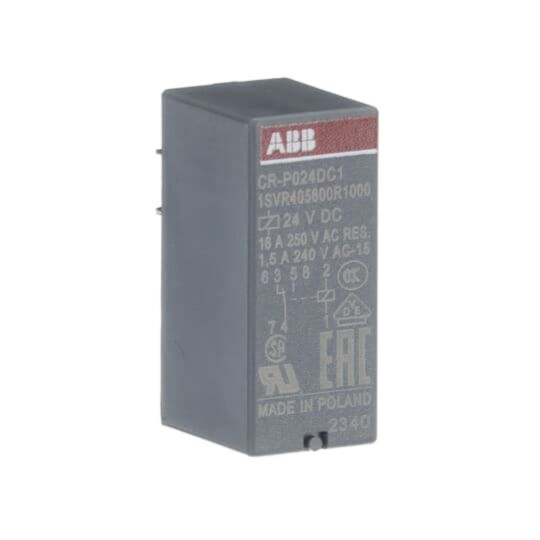

ABB CR-P024DC1 Pack of 10 Pluggable Relays 1C/O 24VDC
MPN: 1SVR405600R1000
Alt. SKU: CR-P024DC1
Special Price
£28.63
£23.86
Regular Price
£44.04
Why Choose the CR-P024DC1 [1SVR405600R1000]
The CR-P024DC1 pluggable interface relay is suitable for direct mounting on a printed circuit board or use in conjunction with ABB's sockets. This relay operates with a 24 V DC rated control supply voltage and has a 1 c/o (SPDT) output with contacts rated at 250 V / 16 A, enabling the possibility of switching multiple circuits with a single input signal. Coupled with a socket, the compact size of this relay offers possibilities to save space within a control panel. Furthermore, with an IP degree of 67, this relay offers complete protection against ingress of dust and airborne particles & protection against water and liquids, up to and including immersion in up to one meter of water. Standard sockets, logical sockets, pluggable function modules, holder and marker are available as accessories.
Technical Specification
- Function: Pluggable PCB interface relay with 1 C/O (SPDT) contact.
- Rated Control Supply Voltage: 24 V DC.
- Contact Ratings: 250 V / 16 A.
- Rated Operational Current AC-12: 16 A at 230 V AC.
- Rated Operational Current DC-12: 16 A at 24 V DC.
- Rated Insulation Voltage: 400 V.
- Degree of Protection: IP67 (dust tight and immersion protected).
- Terminal Type: Soldering pins.
- Standards Compliance: IEC/EN 61810-1, UL94 V-0 flammability rating.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated control supply voltage for the CR-P024DC1 relay?
The rated control supply voltage for the CR-P024DC1 relay is 24 V DC.
What are the contact ratings for the relay?
The relay has contact ratings of 250 V / 16 A.
Can the CR-P024DC1 relay be mounted directly on a PCB?
Yes, the CR-P024DC1 relay is suitable for direct mounting on a printed circuit board.
What is the degree of protection for this relay?
The relay has an IP67 rating, providing complete protection against dust and immersion in water up to one metre.
What type of terminals does the CR-P024DC1 relay use?
The relay uses soldering pins as its terminal type.
Are there accessories available for the CR-P024DC1 relay?
Yes, standard sockets, logical sockets, pluggable function modules, holders, and markers are available as accessories.
What standards does the CR-P024DC1 relay comply with?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 1SVR405600R1000 |
|---|---|
| Manufacturer | ABB |
| Packed Quantity | 10 |
| HS Code | 85364900 |
| Amperage | 16A |
| Number of Poles | 1 Pole |
| Product Lead Time | Please contact us for a delivery time |
| Barcode | 4013614498145 |
| Country of Manufacture | Poland |
| Alternative Product SKU | CR-P024DC1 |
| Coil Voltage | 24VDC |
