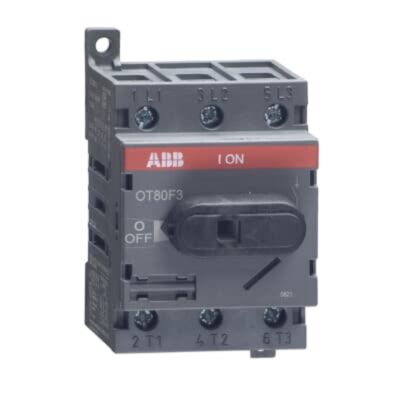

ABB ot80f3 isolator 80 amp load break switch 3 pole
MPN: 1SCA105798R1001
Alt. SKU: OT80F3
Special Price
£34.19
£28.49
Regular Price
£52.60
Why Choose the OT80F3 [1SCA105798R1001]
This 3-pole switch-disconnector is base mounted and designed for DIN-rail installation, operated from the front for ease of access. It is a non-fusible device featuring protected clamp terminals to ensure secure and reliable connections. Please note that the handle and shaft are supplied separately.
Technical Specification
- Function: 3-pole, front operated, base mounted, DIN-rail mountable switch-disconnector (non-fusible, protected clamp terminals).
- Rated Operational Voltage: 750 V main circuit.
- Rated Operational Current: 80 A (AC-21A, AC-22A); 75 A (AC-23A at 380-415 V).
- Rated Impulse Withstand Voltage: 8 kV.
- Degree of Protection: Front IP20.
- Terminal Type and Size Range: Screw terminals; Cu 1.5 to 35 mm² (flexible, solid, stranded, with ferrule).
- Mechanical Durability: 20,000 operations.
- Conventional Thermal Current (I the): 80 A fully enclosed.
- Rated Conditional Short-Circuit Current: Up to 100 kA depending on fuse and voltage rating.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the function of this switch-disconnector?
This is a 3-pole, front operated, base mounted, DIN-rail mountable switch-disconnector designed for non-fusible applications.
What is the rated operational voltage and current?
The rated operational voltage is 750 V, with a rated operational current of 80 A (AC-21A, AC-22A) and 75 A (AC-23A at 380-415 V).
What is the degree of protection for this product?
The degree of protection is IP20 for the front of the switch-disconnector.
What is the cable capacity for the terminals?
The terminal type is screw terminals, accommodating copper cables from 1.5 to 35 mm² (flexible, solid, stranded, with ferrule).
How many operations can this switch-disconnector endure?
The mechanical durability is rated for 20,000 operations.
What is the rated conditional short-circuit current?
The rated conditional short-circuit current can be up to 100 kA, depending on the fuse and voltage rating used.
What standards and approvals does this product conform to?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 1SCA105798R1001 |
|---|---|
| Packed Quantity | 1 |
| HS Code | 85365080 |
| Amperage | 80A |
| Number of Poles | 3 Pole |
| Country of Manufacture | Finland |
| Manufacturer | ABB |
| Mount Type | DIN-rail mounted |
| Alternative Product SKU | OT80F3 |
| Barcode | 6417019397016 |
