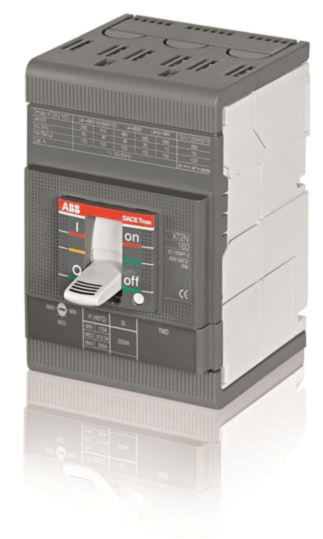

ABB XT2H 160 3 pole High MCCB Fixed Thermal/Adjustable Magnetic Release In=16A Ii=300A
MPN: 1SDA067594R1
Alt. SKU: XT2H 160 TMD 16-300 3p F F
Special Price
£347.20
£289.33
Regular Price
£534.14
Why Choose the Moulded Case Circuit Breaker [1SDA067594R1]
The TMAX XT2H 160 fixed three-pole circuit breaker features front-facing terminals for straightforward installation and maintenance. Equipped with a thermomagnetic release (TMD R) adjustable from 16 to 300 A, it provides reliable protection against overloads and short circuits. Designed for compatibility with a wide range of industrial and commercial electrical systems, this breaker ensures consistent performance and durability in demanding applications.
Technical Specification
- Function: Fixed three-pole thermomagnetic moulded case circuit breaker.
- Rated Current: 16 A (setting range 11.2 to 16 A).
- Rated Operational Voltage: 690 V AC / 500 V DC.
- Number of Poles: 3P (three poles).
- Rated Insulation Voltage: 1000 V.
- Rated Impulse Withstand Voltage: 8 kV.
- Short-Circuit Breaking Capacity: Up to 100 kA AC (depending on voltage), 70 kA DC (with poles in series).
- Terminal Connection: Front bolt terminals, suitable for busbar 32.5 to 100 mm².
- Mechanical Durability: 25,000 operating cycles at 240 cycles per hour.
- Standards Compliance: IEC 60947-2.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated current of the C.BREAKER TMAX XT2H?
The rated current is 16 A, with a setting range from 11.2 to 16 A.
What is the maximum operational voltage for this circuit breaker?
The maximum rated operational voltage is 690 V AC and 500 V DC.
How many poles does the TMAX XT2H have?
This circuit breaker has three poles (3P).
What is the short-circuit breaking capacity?
The short-circuit breaking capacity is up to 100 kA AC (depending on voltage) and 70 kA DC (with poles in series).
What type of terminal connection does this breaker use?
It features front bolt terminals, suitable for busbar sizes from 32.5 to 100 mm².
What is the mechanical durability of the TMAX XT2H?
The mechanical durability is rated for 25,000 operating cycles at 240 cycles per hour.
What standards does the TMAX XT2H comply with?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 1SDA067594R1 |
|---|---|
| Barcode | 8015644014902 |
| Manufacturer | ABB |
| Number of Poles | 3 Pole |
| Amperage | 16A |
| Alternative Product SKU | XT2H 160 TMD 16-300 3p F F |
| Product Lead Time | Please contact us for a delivery time |
