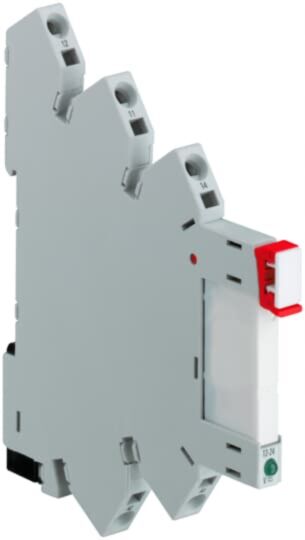

ABB CR-S048/060VADC1SZ Pack of 10 Sockets
MPN: 1SVR405521R5200
Alt. SKU: CR-S048/060VADC1SZ
Special Price
£91.03
£75.86
Regular Price
£140.04
Why Choose the CR-S048/060VADC1SZ [1SVR405521R5200]
CR-S048/060VADC1SZ Socket 1c/o, A1-A2=48-60VAC/DC, 250VAC spring terminals
Technical Specification
- Function: Socket accessory for interface relays CR-S with 1 changeover contact.
- Rated Control Supply Voltage: 48–60 V AC/DC.
- Rated Operational Voltage: 250 V AC.
- Rated Operational Current AC-12: 6 A at 230 V.
- Contact Configuration: 1 changeover contact (1 c/o).
- Insulation Voltage: 250 V.
- Degree of Protection: IP20 (terminals IP20).
- Terminal Type: Spring terminals, suitable for flexible and rigid 2.5 mm² conductors.
- Mounting: DIN rail TH35-7.5 (IEC 60715).
- Tightening Torque: 0.5 N·m.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated control supply voltage for the CR-S048/060VADC1SZ socket?
The rated control supply voltage is 48–60 V AC/DC.
What is the maximum operational voltage for this socket?
The maximum operational voltage is 250 V AC.
What is the contact configuration of the CR-S048/060VADC1SZ socket?
The socket has 1 changeover contact (1 c/o).
What is the degree of protection for the terminals?
The degree of protection for the terminals is IP20.
What type of conductors can be used with the spring terminals?
The spring terminals are suitable for flexible and rigid conductors up to 2.5 mm².
How is the CR-S048/060VADC1SZ socket mounted?
It is mounted on a DIN rail TH35-7.5 (IEC 60715).
What is the tightening torque for the terminals?
The tightening torque is 0.5 N·m.
| Manufacturer Part Number | 1SVR405521R5200 |
|---|---|
| Manufacturer | ABB |
| Packed Quantity | 10 |
| HS Code | 85369010 |
| Amperage | 6A |
| Number of Poles | 1 Pole |
| Barcode | 4013614499234 |
| Country of Manufacture | China |
| Alternative Product SKU | CR-S048/060VADC1SZ |
| Coil Voltage | 48..60VDC |
