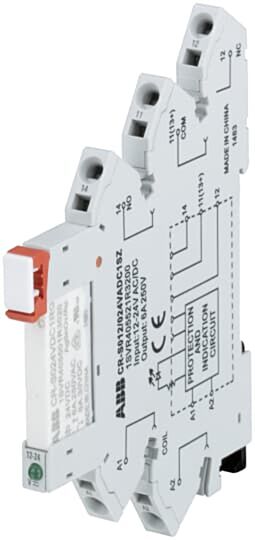

ABB CR-S012/024VADC1SZ Pack of 10 Sockets
MPN: 1SVR405521R3200
Alt. SKU: CR-S012/024VADC1SZ
Special Price
£91.03
£75.86
Regular Price
£140.04
Why Choose the CR-S012/024VADC1SZ [1SVR405521R3200]
CR-S012/024VADC1SZ Socket 1c/o, A1-A2=12-24VAC/DC, 250VAC spring terminals
Technical Specification
- Function: Socket accessory for CR-S interface relays.
- Contact Configuration: 1 changeover contact (1c/o).
- Control Supply Voltage: 12–24 V AC/DC (A1-A2).
- Operational Voltage: Rated up to 250 V AC.
- Operational Current AC-12: 6 A at 230 V.
- Insulation Voltage: Rated 250 V.
- Degree of Protection: IP20 for terminals.
- Terminal Type: Spring terminals.
- Connecting Capacity: Flexible and rigid wire up to 2.5 mm² (14 AWG).
- Mounting: DIN rail TH35-7.5 per IEC 60715.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the control supply voltage range for the CR-S012/024VADC1SZ Socket?
The control supply voltage range is 12–24 V AC/DC (A1-A2).
What is the maximum operational voltage for this socket?
The socket is rated for operational voltages up to 250 V AC.
What is the current rating for the CR-S012/024VADC1SZ Socket?
The operational current rating is 6 A at 230 V AC-12.
What type of terminals does this socket use?
The socket features spring terminals.
What is the maximum cable capacity for this socket?
The connecting capacity is for flexible and rigid wire up to 2.5 mm² (14 AWG).
How is the CR-S012/024VADC1SZ Socket mounted?
This socket is designed for mounting on a DIN rail TH35-7.5 per IEC 60715.
What is the degree of protection for the terminals?
The degree of protection for the terminals is IP20.
| Manufacturer Part Number | 1SVR405521R3200 |
|---|---|
| Manufacturer | ABB |
| Packed Quantity | 10 |
| HS Code | 85369010 |
| Amperage | 6A |
| Number of Poles | 1 Pole |
| Barcode | 4013614499210 |
| Country of Manufacture | China |
| Alternative Product SKU | CR-S012/024VADC1SZ |
| Coil Voltage | 12..24VDC |
