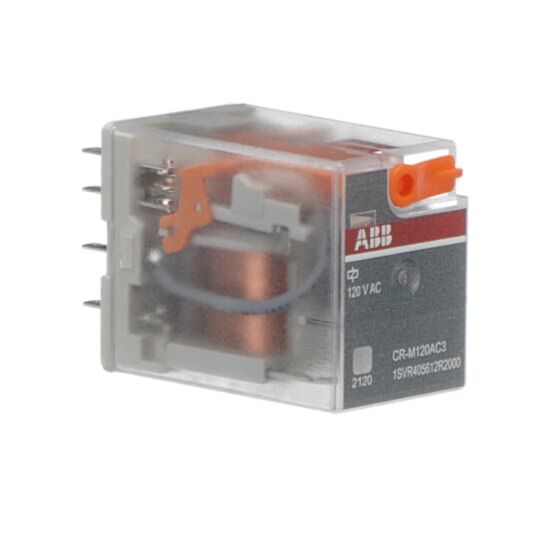

ABB CR-M120AC3 Pack of 10 Pluggable Interface Relays

Why Choose the CR-M120AC3 [1SVR405612R2000]

The CR-M120AC3 pluggable interface relay is a miniature relay, which is to be plugged into a suitable ABB CR-M socket. Plugged into a socket, the combination of relay and socket may be seemlessly snap-on mounted onto a DIN Rail.This relay operates with a 120 V AC rated control supply voltage and has a 3 c/o (SPDT) output with contacts rated at 250 V / 10 A, enabling the possibility of switching multiple circuits with a single input signal. The relay has an integrated test button which is used for the manual actuation of the relay by locking it's output contacts. The test button facilitates easy testing and commissioning. The relay also has an integrated LED, which provides the visual indication of the energization of the relay coil. Standard sockets, logic sockets, pluggable function modules, holders and markers are available as accessories. Standard sockets, logical sockets, pluggable function modules, holder and marker are available as accessories.

Technical Specification

• Function: Pluggable miniature interface relay.
• Control Supply Voltage: 120 V AC.
• Output Configuration: 3 C/O (SPDT) contacts rated at 250 V, 10 A.
• Terminal Type: Flat-pin connections.
• Rated Operational Currents: AC-12: 10 A (230 V), AC-15: 3 A (120 V), 1.5 A (230 V), DC-12: 10 A (24 V), DC-13: 2.5 A (24 V).
• Insulation Voltage: Rated at 250 V.
• Degree of Protection: IP40.
• Mounting: Snap-on DIN rail mounting via standard ABB CR-M socket.
• Standards Compliance: IEC/EN 61810-1, UL 508, CAN/CSA C22.2 No.14.
