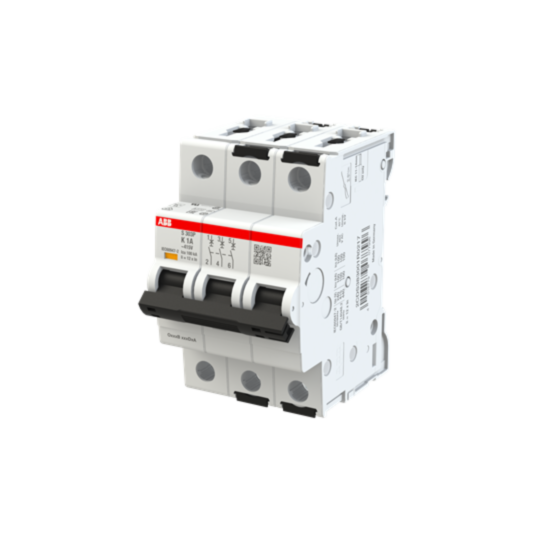

2CDS383001R0217 ABB S303P-K1 Miniature Circuit Breaker - 3P - K - 1 A
MPN: 2CDS383001R0217
Alt. SKU: S303P-K1
Special Price
£124.43
£103.69
Regular Price
£226.24
This product replaces this item:
Why Choose the S303P-K1 [2CDS383001R0217]
The MCBs S300P series assures protection in industrial installations against overload and short circuits. This product is manufactured according to international IEC and UL standards, for the markets where it is required.
Technical Specification
- Function: Protection against overload and short circuits in industrial installations.
- Rated Ultimate Short-Circuit Breaking Capacity: 100 kA at 400 V AC, 415 V AC, 440 V AC; 25 kA at 72 V DC.
- Number of Poles: 3P with three protected poles.
- Voltage Rating: Maximum operating voltage 480Y/277 V AC, 125 V DC (UL/CSA).
- Terminal Type and Capacity: Screw terminals for busbars 10/10 mm², flexible and rigid cables 0.75 to 35 mm².
- Contact Position Indication: Red ON / Green OFF for clear status indication.
- Electrical Endurance: 20,000 AC cycles.
- Mechanical Endurance: 20,000 cycles.
- Dielectric Test Voltage: 2 kV at 50/60 Hz for 1 minute.
- Tightening Torque: 2.8 N·m (18 in·lb UL/CSA).
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the primary function of the MCBs S300P series?
The MCBs S300P series provides protection against overload and short circuits in industrial installations.
What is the rated ultimate short-circuit breaking capacity?
The rated ultimate short-circuit breaking capacity is 100 kA at 400 V AC, 415 V AC, and 440 V AC; 25 kA at 72 V DC.
What is the maximum operating voltage for this product?
The maximum operating voltage is 480Y/277 V AC and 125 V DC (UL/CSA).
What types of cables can be used with the MCBs S300P series?
This product accommodates flexible and rigid cables ranging from 0.75 to 35 mm².
How is the contact position indicated?
The contact position is indicated by a red ON and green OFF status display.
What is the electrical endurance of the MCBs S300P series?
The electrical endurance is rated for 20,000 AC cycles.
What standards does the MCBs S300P series comply with?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CDS383001R0217 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 4016779077996 |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Number of Poles | 3 Pole |
| Amperage | 1A |
| Alternative Product SKU | S303P-K1 |
