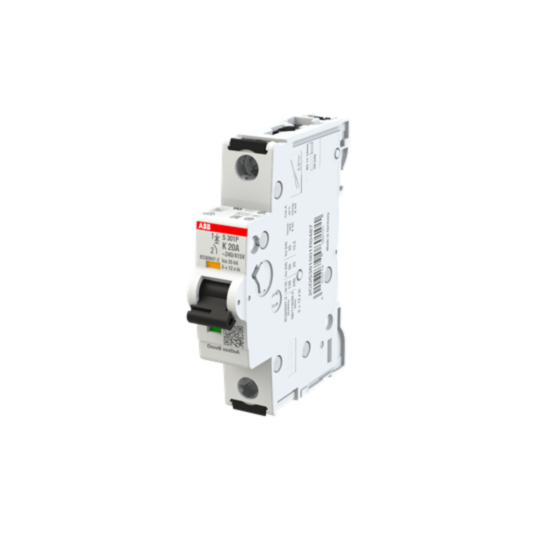

2CDS381001R0487 ABB S301P-K20 Miniature Circuit Breaker - 1P - K - 20 A
MPN: 2CDS381001R0487
Alt. SKU: S301P-K20
Special Price
£29.35
£24.46
Regular Price
£53.38
This product replaces this item:
Why Choose the S301P-K20 [2CDS381001R0487]
The MCBs S300P series assures protection in industrial installations against overload and short circuits. This product is manufactured according to international IEC and UL standards, for the markets where it is required.
Technical Specification
- Function: Protection against overload and short circuits in industrial installations.
- Voltage Ratings: Maximum operating voltage 480Y / 277 V AC.
- Short-Circuit Breaking Capacity: Ultimate 25 kA (240 V AC, 230 V, 72 V DC); Service 12.5 kA (240 V AC, 72 V DC).
- Contact Configuration: Single pole (1P) with red ON / green OFF indication.
- Terminal Type: Screw terminals, failsafe bi-directional cylinder-lift.
- Connecting Capacity: Flexible 0.75–25 mm², rigid 0.75–35 mm², busbar 10/10 mm².
- Electrical Endurance: 20,000 AC cycles.
- Mechanical Endurance: 20,000 cycles.
- Dielectric Test Voltage: 2 kV at 50/60 Hz for 1 minute.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the primary function of the MCBs S300P series?
The MCBs S300P series provides protection against overload and short circuits in industrial installations.
What are the voltage ratings for the MCBs S300P series?
The maximum operating voltage is 480Y / 277 V AC.
What is the short-circuit breaking capacity of the MCBs S300P series?
The ultimate breaking capacity is 25 kA at 240 V AC and 72 V DC; the service breaking capacity is 12.5 kA at 240 V AC and 72 V DC.
What type of terminal does the MCBs S300P series use?
It features screw terminals with a failsafe bi-directional cylinder-lift mechanism.
What is the cable capacity for the MCBs S300P series?
The connecting capacity is flexible 0.75–25 mm², rigid 0.75–35 mm², and busbar 10/10 mm².
What is the electrical endurance of the MCBs S300P series?
The electrical endurance is rated for 20,000 AC cycles.
Is the MCBs S300P series compliant with any standards?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CDS381001R0487 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 4016779080101 |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Number of Poles | 1 Pole |
| Amperage | 20A |
| Alternative Product SKU | S301P-K20 |
