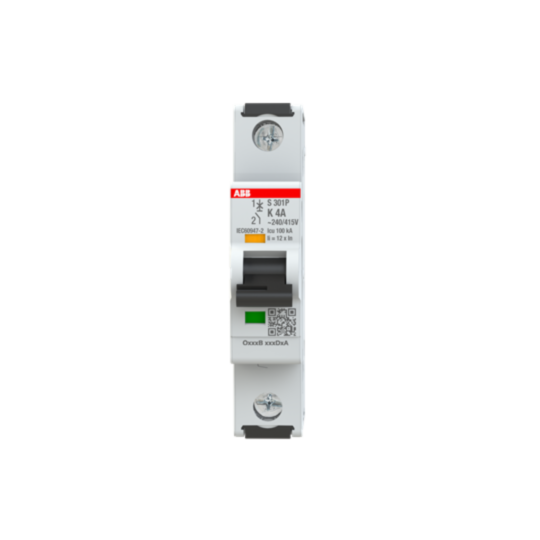

2CDS381001R0337 ABB S301P-K4 Miniature Circuit Breaker - 1P - K - 4 A
MPN: 2CDS381001R0337
Alt. SKU: S301P-K4
Special Price
£33.19
£27.66
Regular Price
£60.35
This product replaces this item:
Why Choose the S301P-K4 [2CDS381001R0337]
The MCBs S300P series assures protection in industrial installations against overload and short circuits. This product is manufactured according to international IEC and UL standards, for the markets where it is required.
Technical Specification
- Function: Miniature Circuit Breaker for overload and short-circuit protection in industrial installations.
- Rated Ultimate Short-Circuit Breaking Capacity (Icu): 100 kA at 230 V AC, 240 V AC, and 72 V DC.
- Contact Configuration: Single pole (1P) with Red ON / Green OFF indication.
- Electrical Endurance: 20,000 AC cycles.
- Mechanical Endurance: 20,000 cycles.
- Terminal Type: Screw terminals with failsafe bi-directional cylinder-lift design.
- Connecting Capacity: Flexible 0.75–25 mm², rigid/stranded 0.75–35 mm², busbar 10 × 10 mm².
- Dielectric Test Voltage: 2 kV at 50/60 Hz for 1 minute.
- Tightening Torque: 2.8 N·m (18 in·lb for UL/CSA).
- Installation Size: As per DIN 43880 size 1.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the main function of the MCBs S300P series?
The MCBs S300P series provides overload and short-circuit protection in industrial installations.
What is the rated ultimate short-circuit breaking capacity of this product?
The rated ultimate short-circuit breaking capacity (Icu) is 100 kA at 230 V AC, 240 V AC, and 72 V DC.
What type of contact configuration does the MCBs S300P series have?
It features a single pole (1P) contact configuration with red ON / green OFF indication.
What is the connecting capacity for cables?
The connecting capacity is flexible 0.75–25 mm², rigid/stranded 0.75–35 mm², and busbar 10 × 10 mm².
What is the tightening torque for the terminals?
The tightening torque is 2.8 N·m (18 in·lb for UL/CSA).
What are the electrical and mechanical endurance ratings?
The electrical endurance is rated for 20,000 AC cycles, and the mechanical endurance is also 20,000 cycles.
What standards does the MCB comply with?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CDS381001R0337 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 4016779080248 |
| Product Image | For Illustration Purposes Only |
| Manufacturer | ABB |
| Number of Poles | 1 Pole |
| Amperage | 4A |
| Alternative Product SKU | S301P-K4 |
