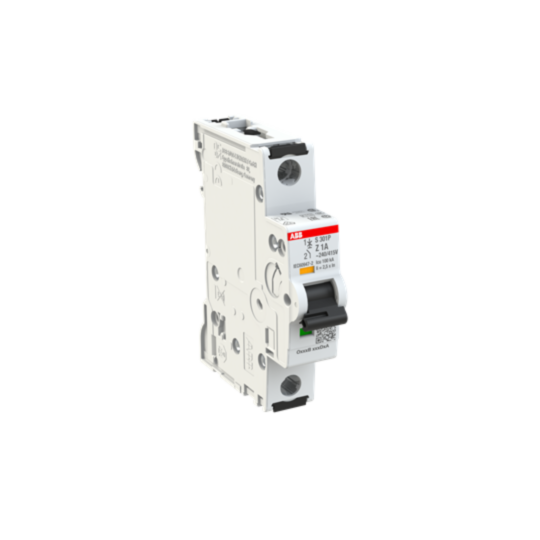

2CDS381001R0218 ABB S301P-Z1 Miniature Circuit Breaker - 1P - Z - 1 A
MPN: 2CDS381001R0218
Alt. SKU: S301P-Z1
Special Price
£38.51
£32.09
Regular Price
£70.01
This product replaces this item:
Why Choose the S301P-Z1 [2CDS381001R0218]
The MCBs S300P series assures protection in industrial installations against overload and short circuits. This product is manufactured according to international IEC and UL standards, for the markets where it is required.
Technical Specification
- Function: Single-pole MCB providing protection against overload and short circuits.
- Rated Ultimate Short-Circuit Breaking Capacity: 100 kA at 230 V AC, 240 V AC, and 72 V DC.
- Rated Service Short-Circuit Breaking Capacity: 100 kA at 230 V AC, 240 V AC, and 72 V DC.
- Dielectric Test Voltage: 2 kV at 50/60 Hz for 1 minute.
- Terminal Type and Capacity: Screw terminals; flexible conductors 0.75–25 mm², rigid up to 35 mm², busbar 10/10 mm².
- Contact Position Indication: Red ON / Green OFF.
- Electrical Endurance: 20,000 AC cycles.
- Mechanical Endurance: 20,000 cycles.
- Tightening Torque: 2.8 N·m (18 in·lb UL/CSA).
- Actuator Type and Material: Toggle actuator, black insulation group II, sealable.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the function of the MCB S300P series?
The MCB S300P series provides protection against overload and short circuits in industrial installations.
What is the rated ultimate short-circuit breaking capacity?
The rated ultimate short-circuit breaking capacity is 100 kA at 230 V AC, 240 V AC, and 72 V DC.
What is the terminal capacity for the MCB S300P?
The terminal type is screw terminals, with flexible conductors rated from 0.75 to 25 mm² and rigid conductors up to 35 mm².
What is the dielectric test voltage for this MCB?
The dielectric test voltage is 2 kV at 50/60 Hz for 1 minute.
How many electrical cycles can the MCB S300P endure?
The MCB has an electrical endurance of 20,000 AC cycles.
What type of actuator does the MCB S300P use?
The MCB features a toggle actuator made of black insulation group II material, which is sealable.
What standards does the MCB S300P comply with?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CDS381001R0218 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 4016779080378 |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Number of Poles | 1 Pole |
| Amperage | 1A |
| Alternative Product SKU | S301P-Z1 |
