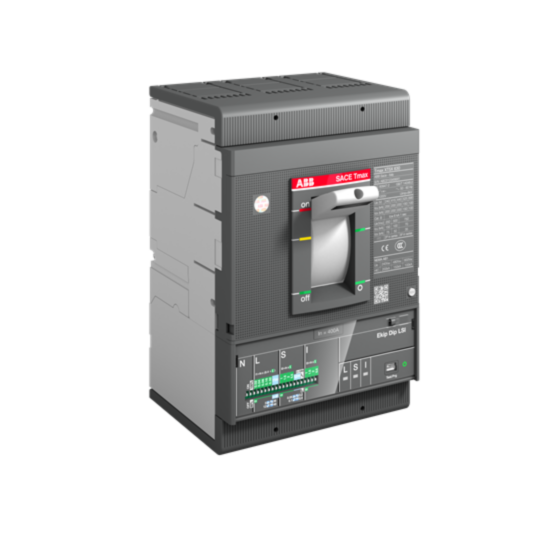

ABB XT5N 400 3 pole Normal MCCB Electronic trip unit LS/I Ii=400A
MPN: 1SDA100354R1
Alt. SKU: XT5N 400 Ekip Dip LS/I In=400 3p F F
Special Price
£954.18
£795.15
Regular Price
£1,467.97
This product replaces this item:
Why Choose the Moulded Case Circuit Breaker [1SDA100354R1]
The TMax XT5N 400 fixed three-pole circuit breaker features front-access terminals and a solid-state release mechanism, designed for reliable AC protection. Integrated with the EKIP DIP LS/I R 400 electronic trip unit, it ensures precise and adjustable overload and short-circuit protection. This robust device is suitable for industrial and commercial electrical installations requiring dependable performance and straightforward maintenance.
Technical Specification
- Function: Fixed three-pole moulded case circuit breaker with solid-state Ekip Dip LS/I release.
- Rated Current: 400 A.
- Rated Operational Voltage: 690 V AC.
- Rated Service Short-Circuit Breaking Capacity (Ics): Up to 70 kA (220-240 V AC), down to 20 kA (690 V AC).
- Rated Insulation Voltage (Ui): 1000 V.
- Rated Impulse Withstand Voltage (Uimp): 8 kV.
- Number of Poles: 3P (three-pole).
- Terminal Connection Type: Front terminals.
- Mechanical Durability: 20,000 cycles at 120 cycles/hour.
- Electrical Durability: 7,000 cycles at 60 cycles/hour.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated current of the C.BREAKER TMAX XT5N?
The rated current is 400 A.
What is the maximum operational voltage for this circuit breaker?
The maximum rated operational voltage is 690 V AC.
What is the short-circuit breaking capacity of the TMAX XT5N?
It has a rated service short-circuit breaking capacity of up to 70 kA at 220-240 V AC and down to 20 kA at 690 V AC.
How many poles does the TMAX XT5N have?
The circuit breaker has three poles (3P).
What type of terminal connection does this circuit breaker use?
The TMAX XT5N features front terminals for connection.
What is the mechanical durability rating of this product?
The mechanical durability is rated for 20,000 cycles at 120 cycles/hour.
What are the insulation and impulse withstand voltage ratings?
The rated insulation voltage is 1000 V and the rated impulse withstand voltage is 8 kV.
| Manufacturer Part Number | 1SDA100354R1 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 8056221004312 |
| HS Code | 85362090 |
| Country of Manufacture | Italy |
| Manufacturer | ABB |
| Number of Poles | 3 Pole |
| Amperage | 400A |
| Alternative Product SKU | XT5N 400 Ekip Dip LS/I In=400 3p F F |
