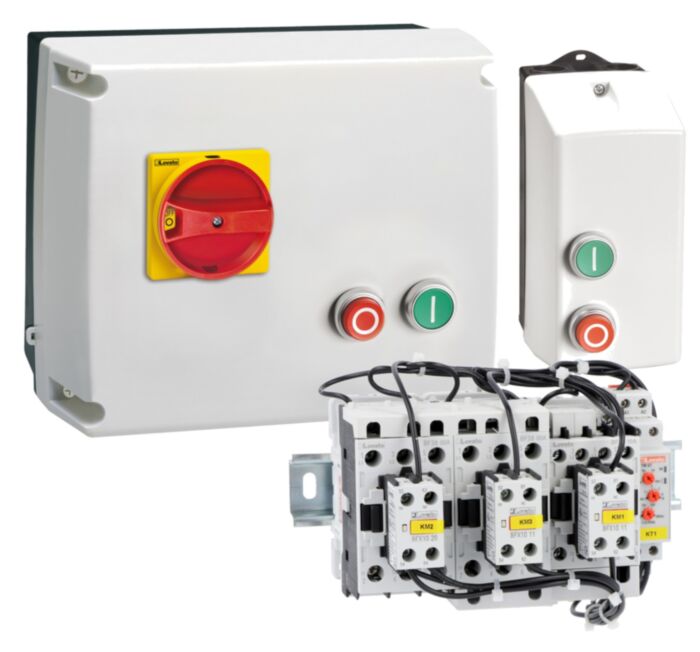

M0P009122302V3 - DOL STARTER M0P 230/50-60 1 4-2 3A
MPN: M0P009122302V3
Special Price
£152.58
£127.15
Regular Price
£254.30
Why Choose the M0P009122302V3?
Lovato M0P009122302V3 is a compact direct-on-line-starter designed for reliable motor starting and protection. Housed in a robust IP65 non‑metallic enclosure, it integrates a thermal overload relay adjustable from 1.4 to 2.3A for 0.55 to 0.75kW motors at 400V. A 230VAC 50/60Hz coil drives the contactor, while clearly marked START and STOP/RESET pushbuttons simplify operation and maintenance in demanding industrial and commercial environments.
Engineered for compliance and durability, this direct-on-line-starter meets IEC/EN 60947-1, IEC/EN 60947-4-1 and UL508 CSA C22.2 n° 14. It delivers 2.3A / 0.75kW AC‑3 performance at 400V and a 1 HP rating at 480V, with -25 to +60 °C operating temperature tolerance. The enclosed design with Start-Stop/Reset buttons simplifies installation and operation, helping safeguard motors against overload conditions.
Key Benefits
- IP65 non‑metallic enclosure for reliable protection in dusty or damp locations.
- Integrated thermal overload relay adjustable from 1.4 to 2.3A.
- Rated 2.3A / 0.75kW AC‑3 at 400V for small motors.
- 230VAC 50/60Hz AC coil for straightforward control integration.
- Start and Stop/Reset pushbuttons for quick local motor control.
- Complies with IEC/EN 60947 and UL/CSA standards.
- Operates from -25 to +60 °C for versatile environments.
Technical Specification
- Weight: 760 g
- Operating temperature: -25 to +60 °C
- Storage temperature: -40 to +70 °C
What’s Included
- Enclosed direct-on-line starter assembly (230VAC coil)
- Integrated thermal overload relay (1.4...2.3A)
- Non-metallic IP65 enclosure with Start and Stop/Reset buttons
- Downloadable product data sheet
Applications
- Small pumps and fans up to 0.75kW at 400V
- Light-duty conveyors and material handling
- Compact compressors and workshop machinery
- General motor control requiring IP65 enclosed DOL starting
Frequently Asked Questions
What is the contactor coil voltage?
The contactor coil is 230VAC 50/60Hz.
What current range does the thermal overload cover?
It is adjustable from 1.4 to 2.3A.
What is the enclosure’s ingress protection rating?
It is IP65 and uses a non‑metallic enclosure.
What motor power is supported at 400V AC-3?
It is rated 0.55 to 0.75kW at 400V AC‑3.
Which standards does this starter comply with?
It complies with IEC/EN 60947-1, IEC/EN 60947-4-1 and UL508 CSA C22.2 n° 14.
Safety note: Installation must be carried out by a qualified electrician. Isolate the supply before work, set the thermal overload to the motor’s current within the specified range, and operate within the stated ratings and temperatures.
| Manufacturer Part Number | M0P009122302V3 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85371098 |
| Barcode | 8013975155868 |
