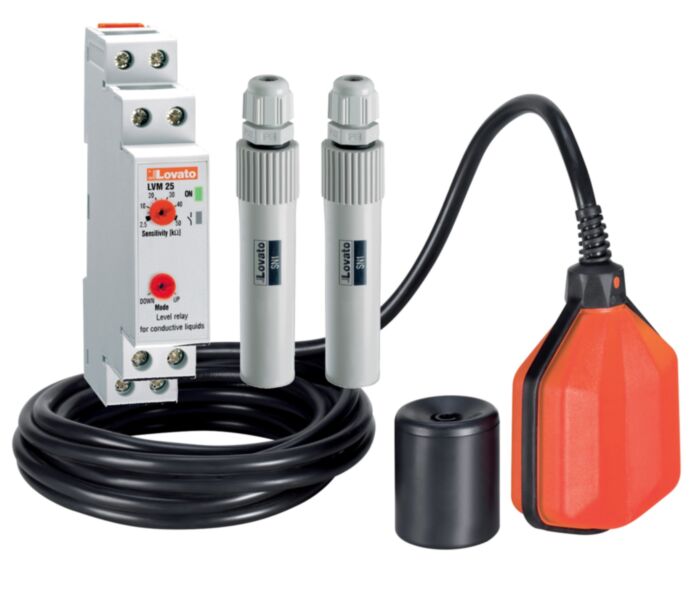

LVM25240 - LEVEL CONTROL RELAY 1 MOD. 24-240VAC/D

Why Choose the LVM25240?

Choose the Lovato LVM25240 Level Monitoring Relay (SKU LVM25240) for flexible emptying or filling control. This modular, multi-voltage unit operates from 24...240 VAC/DC and automatically resets to keep processes running. With 4 kV impulse withstand (Uimp) and 8 A Ith (IEC), it delivers robust performance for level applications in tanks, sumps and process vessels across industrial and building services.

Designed to withstand demanding environments, the LVM25240 operates from -20 to +60 °C and stores from -30 to +80 °C. Compliance with IEC/EN 60255-5, IEC/EN 61000-6-2, IEC/EN 61000-6-3, UL508 and CSA C22.2 n° 14 supports regulatory requirements. Secure terminations are ensured with up to 0.8 Nm tightening torque. Product type designation LVM25 identifies it within the Lovato range.

Key Benefits

• Multi-voltage 24...240 VAC/DC supply simplifies specification and stocking.
• Emptying or filling function enables flexible level control strategies.
• Automatic resetting minimises downtime after level state changes.
• 4 kV impulse withstand (Uimp) enhances surge and transient resilience.
• 8 A Ith (IEC) thermal rating supports robust control circuitry.
• Operates from -20 to +60 °C for dependable performance on site.
• Conforms to IEC/EN, UL and CSA standards for assured compliance.

Technical Specification

• Product type designation: LVM25
• Ith (IEC): 8 A
• Terminal tightening torque (max): 0.8 Nm
• Rated impulse withstand voltage Uimp: 4 kV
• Operating temperature: -20 to +60 °C
• Storage temperature: -30 to +80 °C
• Weight: 95 g

What’s Included

• Lovato LVM25240 level monitoring relay
• Installation and user instructions

Applications

• Pump emptying and filling control for tanks and reservoirs
• Water and wastewater level management in plant rooms
• Industrial process level control for compatible fluids
• General level monitoring within building services and utilities

Safety note: Install and commission only by qualified personnel. Isolate the power supply before wiring, tighten terminals to a maximum of 0.8 Nm, and follow applicable IEC/EN, UL and CSA standards and the manufacturer’s instructions.
