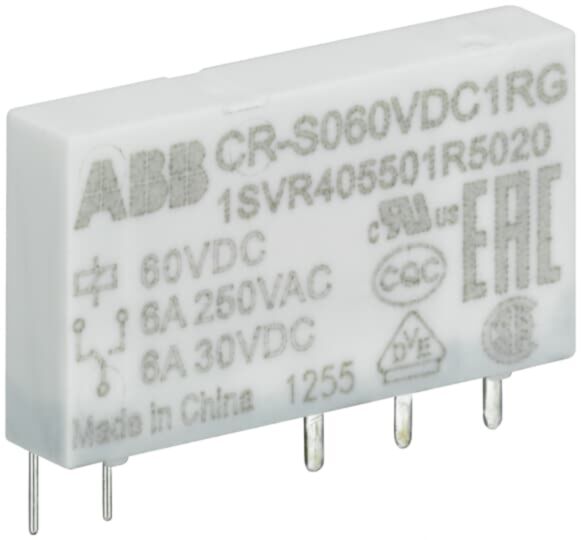

ABB CR-S060VDC1R Interface Relay
MPN: 1SVR405501R5010
Alt. SKU: CR-S060VDC1R
Special Price
£7.66
£6.38
Regular Price
£11.78
Why Choose the CR-S060VDC1R [1SVR405501R5010]
The CR-S060VDC1R is a slim pluggable interface relay is suitable for direct mounting on a printed circuit board or use in conjunction with ABB's sockets. Plugged into a socket, the combination of relay and socket may be seemlessly snap-on mounted onto a DIN Rail. This relay operates with a 60 V DC rated control supply voltage and has a 1 c/o (SPDT) output with contacts rated at 250 V / 6 A.This slim pluggable interface relays may be used for electrical isolation, amplification and signal matching. The CR-S relays are 6.2 mm wide and therefore allow for the switching of high currents on a small footprint. Moreover, CR-S relays are UL 94-V0 certified, improving safety by providing high levels flame retardation. Screw and spring sockets, jumper bars and markers are available as accessories.
Technical Specification
- Function: Pluggable slim interface relay for PCB mounting or socket use.
- Control Supply Voltage: 60 V DC rated.
- Contact Configuration: 1 C/O (SPDT) output.
- Contact Rating: 250 V / 6 A maximum switching capacity.
- Operational Current: AC-12 (230 V) 6 A, DC-12 (24 V) 6 A, DC-13 (24 V) 1 A.
- Degree of Protection: IP20.
- Overvoltage Category: III.
- Dimensions: 6.2 mm width, slim design for space-saving installation.
- Standards Compliance: CAN/CSA C22.2 No.14, IEC/EN 61810-1, UL 508 certified.
- Mechanical Compatibility: Pluggable on ABB sockets; snap-on mountable to DIN Rail.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the control supply voltage for the CR-S060VDC1R relay?
The control supply voltage for the CR-S060VDC1R relay is rated at 60 V DC.
What is the contact configuration of this relay?
The CR-S060VDC1R relay has a 1 c/o (SPDT) output configuration.
What is the maximum switching capacity of the relay contacts?
The maximum switching capacity of the relay contacts is 250 V / 6 A.
Can the CR-S060VDC1R relay be mounted on a DIN Rail?
Yes, when plugged into an ABB socket, it can be snap-on mounted onto a DIN Rail.
What is the width of the CR-S060VDC1R relay?
The relay has a slim design with a width of 6.2 mm.
What standards does the CR-S060VDC1R relay comply with?
See the manufacturer's data sheet for standards and approvals.
What accessories are available for the CR-S060VDC1R relay?
Accessories include screw and spring sockets, jumper bars, and markers.
| Manufacturer Part Number | 1SVR405501R5010 |
|---|---|
| Manufacturer | ABB |
| Packed Quantity | 1 |
| HS Code | 85364900 |
| Barcode | 4013614499166 |
| Amperage | 6A |
| Number of Poles | 1 Pole |
| Country of Manufacture | China |
| Alternative Product SKU | CR-S060VDC1R |
| Coil Voltage | 60VDC |
