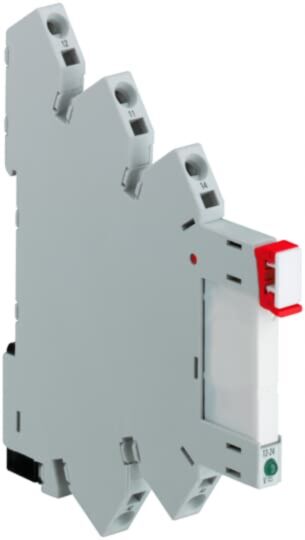

ABB CR-S110/125VADC1SZ Pack of 10 Sockets
MPN: 1SVR405521R6200
Alt. SKU: CR-S110/125VADC1SZ
Special Price
£109.91
£91.59
Regular Price
£169.08
Why Choose the CR-S110/125VADC1SZ [1SVR405521R6200]
CR-S110/125VADC1SZ Socket 1c/o, A1-A2=110-125VAC/DC, 250VAC spring terminals
Technical Specification
- Function: Accessory socket for CR-S interface relays, 1 changeover contact.
- Control Supply Voltage: 110 to 125 V AC/DC.
- Operational Voltage: Rated 250 V AC.
- Operational Current AC-12 (230 V): 6 A.
- Rated Insulation Voltage: 250 V.
- Contact Configuration: 1 changeover contact (1 c/o).
- Terminal Type and Capacity: Spring terminals, flexible and rigid up to 2.5 mm² (14 AWG).
- Degree of Protection: IP20 (terminals).
- Mounting: DIN Rail TH35-7.5 (IEC 60715).
- Tightening Torque: 0.5 N·m (4.42 in·lb UL/CSA).
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the function of the CR-S110/125VADC1SZ socket?
The CR-S110/125VADC1SZ socket serves as an accessory socket for CR-S interface relays, featuring 1 changeover contact.
What is the control supply voltage range for this socket?
The control supply voltage range is 110 to 125 V AC/DC.
What is the maximum operational current for this socket?
The maximum operational current is 6 A at 230 V AC under AC-12 conditions.
What type of terminals does the CR-S110/125VADC1SZ socket use?
The socket uses spring terminals, accommodating flexible and rigid cables up to 2.5 mm² (14 AWG).
How is the CR-S110/125VADC1SZ socket mounted?
The socket is designed for mounting on a DIN Rail TH35-7.5, compliant with IEC 60715.
What is the degree of protection for the terminals?
The degree of protection for the terminals is IP20.
What is the tightening torque for the terminals?
The tightening torque for the terminals is 0.5 N·m (4.42 in·lb UL/CSA).
| Manufacturer Part Number | 1SVR405521R6200 |
|---|---|
| Manufacturer | ABB |
| Packed Quantity | 10 |
| Amperage | 6A |
| Number of Poles | 1 Pole |
| Product Lead Time | Please contact us for a delivery time |
| Barcode | 4013614499258 |
| Alternative Product SKU | CR-S110/125VADC1SZ |
| Coil Voltage | 110..125VAC |
