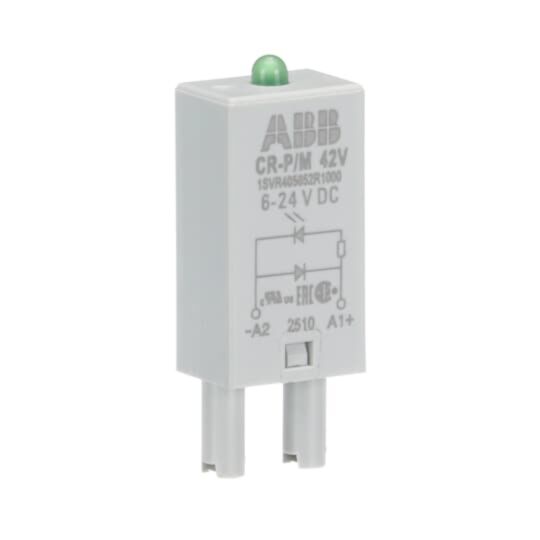

ABB CR-P/M 42V Diode and LED Module
MPN: 1SVR405652R1000
Alt. SKU: CR-P/M 42V
Special Price
£2.56
£2.13
Regular Price
£3.92
Why Choose the CR-P/M 42V [1SVR405652R1000]
The CR-P/M 42V plug-in module is a pluggable function module for the CR-P and CR-M range sockets. This module provides reverse polarity protection/free wheeling diode and a green LED indication. The rated control supply voltage is 6-24 V DC.
Technical Specification
- Function: Pluggable function module for CR-P and CR-M interface relay sockets.
- Features: Reverse polarity protection, free-wheeling diode, green LED indication.
- Rated Control Supply Voltage: 6 to 24 V DC.
- Output Signal: None.
- Weight: 0.003 kg.
- Standards Compliance: CAN/CSA C22.2 No.14, IEC/EN 63000, IEC/EN 61984, UL 508.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the function of the CR-P/M 42V module?
The CR-P/M 42V module is a pluggable function module designed for CR-P and CR-M range sockets, providing reverse polarity protection and a free-wheeling diode.
What is the rated control supply voltage for this module?
The rated control supply voltage for the CR-P/M 42V module is 6 to 24 V DC.
Does the module provide any output signal?
No, the CR-P/M 42V module does not provide an output signal.
What is the weight of the CR-P/M 42V module?
The weight of the CR-P/M 42V module is 0.003 kg.
What standards does the CR-P/M 42V module comply with?
The module complies with CAN/CSA C22.2 No.14, IEC/EN 63000, IEC/EN 61984, and UL 508. See the manufacturer's data sheet for standards and approvals.
Is there any indication feature in the module?
Yes, the CR-P/M 42V module features a green LED indication.
| Manufacturer Part Number | 1SVR405652R1000 |
|---|---|
| Manufacturer | ABB |
| Packed Quantity | 1 |
| HS Code | 85411000 |
| Barcode | 4013614528729 |
| Country of Manufacture | China |
| Alternative Product SKU | CR-P/M 42V |
