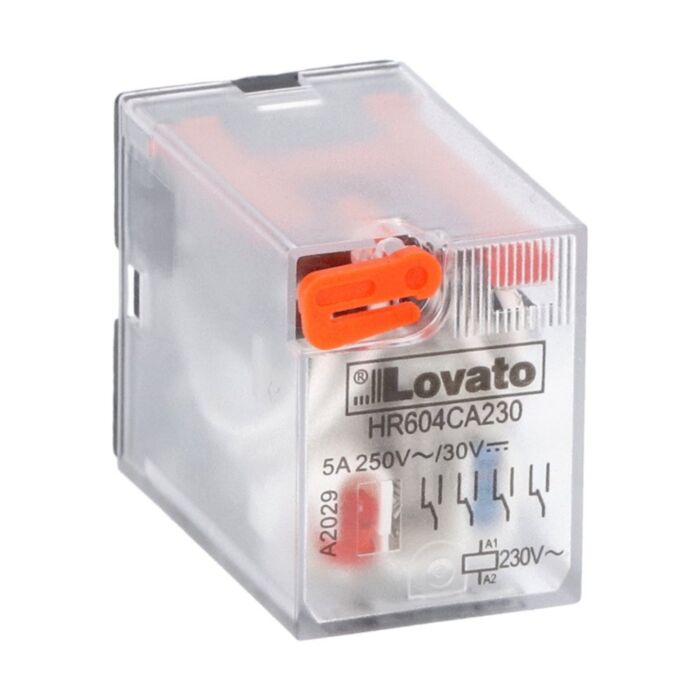

HR604CA230 - INDUSTRIAL RELAY 4C/O 5A 230VAC + LED

Why Choose the HR604CA230?

Lovato’s HR604CA230 industrial relay delivers reliable switching for control and automation. The HR604CA230 features 4 C/O contacts, a 230VAC control coil and a 5 A Ith rating, with a clear LED state indicator and a mechanical actuator for straightforward status checks and actuation. Rated Ui 500 V and Uimp 4 kV, it fits socket HR6XS4 for fast panel integration.

Built for longevity with a mechanical life of 20,000,000 cycles, this industrial relay operates from -40 to +70 °C and stores from -40 to +80 °C. Conforming to IEC/EN 61810, it offers robust insulation and impulse withstand capabilities for demanding environments. Choose Lovato quality to streamline maintenance and ensure consistent performance across control panels, machinery and interface applications.

Key Benefits

• LED state indicator enables quick visual status confirmation.
• Mechanical actuator supports reliable testing and manual actuation when required.
• 4 C/O contacts provide versatile changeover switching capability.
• 230VAC control voltage suits common industrial control circuits.
• 5 A Ith rating supports dependable free-air current handling.
• High insulation and impulse withstand: Ui 500 V, Uimp 4 kV.
• Wide -40 to +70 °C operating range for harsh environments.
• Long mechanical life of 20,000,000 cycles reduces downtime.

Technical Specification

• Product type designation: HR604C
• Rated insulation voltage Ui (IEC/EN): 500 V
• Rated impulse withstand voltage Uimp: 4 kV
• Ith (IEC): 5 A
• Mechanical life: 20000000 cycles
• Operating temperature: -40 to +70 °C
• Storage temperature: -40 to +80 °C

What’s Included

• Lovato HR604CA230 industrial relay
• Quick start and installation guide
• Protective packaging for transit

Applications

• Control panels and automation requiring 4 C/O changeover switching
• Machinery interface and auxiliary signal switching up to 5 A Ith
• General process control with 230VAC relay coils
• Building services and OEM equipment utilising modular relays
• Panel retrofits using HR6XS4-compatible sockets

Safety note: Installation and servicing should be performed by qualified personnel. Isolate power before handling, use the specified HR6XS4 socket, and adhere to the stated ratings and applicable standards.
