HR604CA024 - INDUSTRIAL RELAY 4C/O 5A 24VAC + LED
MPN: HR604CA024
Special Price
£4.73
£3.94
Regular Price
£7.88
Why Choose the HR604CA024?

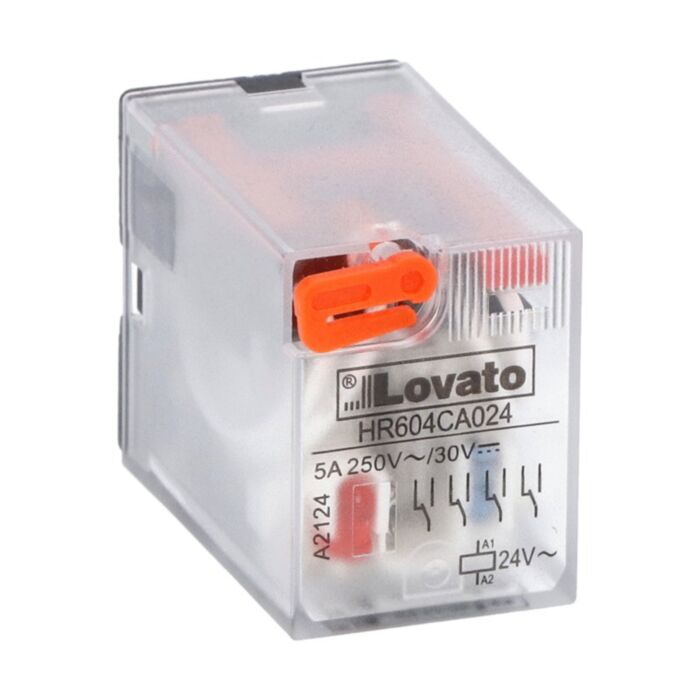

Engineered for reliable signalling and control, the Lovato HR604CA024 industrial relay combines a 24VAC control coil with four changeover contacts rated at 5 A Ith. The SKU HR604CA024 features a clear LED state indicator and a robust mechanical actuator for confident status checks and manual operations. Designed to fit socket HR6XS4, it delivers fast, consistent switching in panels where compact, high‑duty performance and easy diagnostics are essential.
Built to IEC/EN 61810, this HR604C‑designated relay offers 500 V rated insulation and 4 kV impulse withstand for dependable isolation. A 20,000,000‑cycle mechanical life and wide -40 to +70 °C operating range support long service in harsh environments, while storage to -40 to +80 °C safeguards spares. Specify this industrial relay when you need compact reliability with clear visual indication and straightforward manual actuation.
Key Benefits
- 24VAC control coil for straightforward integration with common control voltages.
- Four changeover contacts deliver flexible 4 C/O switching configurations.
- 5 A Ith rating supports a broad range of signalling loads.
- LED state indicator enables rapid visual status verification.
- Mechanical actuator allows manual operation and testing on site.
- Rated insulation 500 V, 4 kV impulse withstand enhances isolation.
- Long 20,000,000-cycle mechanical life reduces maintenance interventions.
Technical Specification
- Product type designation: HR604C
- Rated insulation voltage Ui (IEC/EN): 500 V
- Rated impulse withstand voltage Uimp: 4 kV
- Ith (IEC): 5 A
- Mechanical life: 20000000 cycles
- Operating temperature: -40 to +70 °C
- Storage temperature: -40 to +80 °C
What’s Included
- Lovato HR604CA024 industrial relay unit
- Manufacturer technical documentation (online access)
- Protective packaging for transit
Applications
- Control panels and switchboards requiring 24VAC coil relays
- Industrial signalling and status indication circuits
- Machinery interlocks and auxiliary switching functions
- General automation I/O isolation and interface tasks
Frequently Asked Questions
What is the coil/control voltage for the HR604CA024?
The relay uses a 24VAC control voltage.
How many contacts and what type does it provide?
It provides four changeover contacts, 4 C/O.
What is the current rating of the contacts?
The IEC conventional free air thermal current (Ith) is 5 A.
Does the relay include an LED indicator and mechanical actuator?
Yes, it has an LED state indicator and a mechanical actuator.
What environmental and standards ratings should I note?
Operating range is -40 to +70 °C, with Ui 500 V, Uimp 4 kV, and IEC/EN 61810 conformity.
Safety note: Install and service only by qualified personnel. Always isolate power before wiring, use the HR6XS4 socket as specified, and operate strictly within the stated voltage, current, and temperature ratings.
| Manufacturer Part Number | HR604CA024 |
|---|---|
| Manufacturer | Lovato |
| Barcode | 8013975233641 |
