BFA03270400 - S-D STARTER 400/50-60 W/O RELAY
MPN: BFA03270400
Special Price
£726.56
£605.47
Regular Price
£1,210.94
Why Choose the BFA03270400?

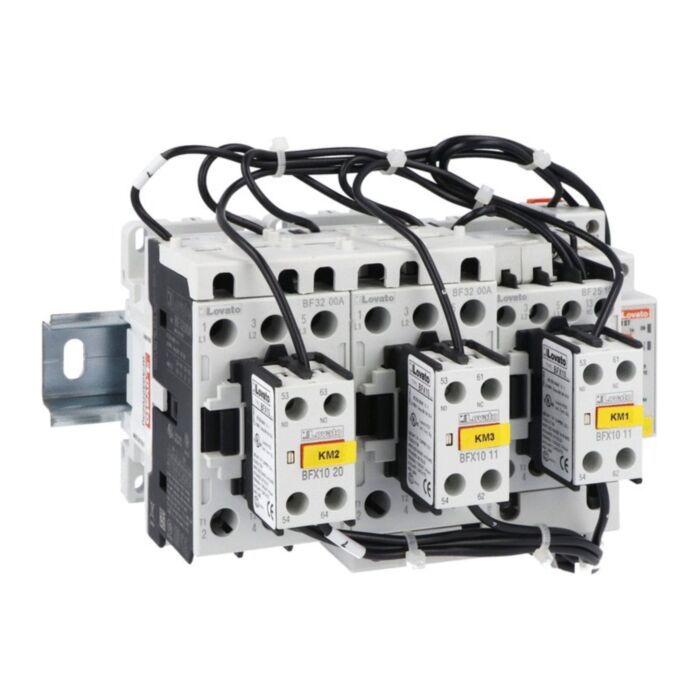

Lovato's Completa star-delta starter SKU BFA03270400 delivers dependable motor starting in an open-frame build. Designed for applications requiring star-delta starting, it supports a maximum IEC operating current of 50 A and a starting time up to 12 seconds. The AC control coil is rated 400 VAC at 50/60 Hz, while the assembly is suitable for up to 30 operations per hour in routine industrial duty.
With a UL/CSA horsepower rating of 30 HP at 480 V, this star-delta starter meets common motor control requirements across panels and machinery. Identified by product designation BFA032 and weighing 1900 g, it integrates cleanly into engineered builds. Lovato lists Sustainability certification for this model, supporting responsible procurement without compromising performance or reliability in demanding start-duty cycles.
Key Benefits
- Open-frame construction for straightforward panel integration.
- Up to 12-second starting time for controlled motor acceleration.
- Rated 50 A IEC maximum operating current for robust duty.
- Supports 30 operations per hour for routine industrial use.
- 400 VAC 50/60 Hz AC coil for reliable control voltage.
- UL/CSA 30 HP at 480 V rating.
- Sustainability certification supports responsible specification and procurement goals.
- Clear identification with BFA032 product designation.
Technical Specification
- Product type designation: BFA032
- Weight: 1900 g
What’s Included
- Lovato BFA03270400 star-delta starter (open frame)
- Integrated AC control coil, 400 VAC 50/60 Hz
- Manufacturer-supplied product datasheet
- Basic installation and safety guidelines
Applications
- Star-delta starting of three-phase motors up to 30 HP at 480 V
- Industrial control panels requiring up to 12-second start timing
- Systems limited to 30 operations per hour duty cycle
- Projects specifying open-frame starters with 400 VAC control coils
Frequently Asked Questions
What coil voltage and frequency does the BFA03270400 use?
It has an AC control coil rated at 400 VAC, 50/60 Hz.
What is the maximum IEC operating current for this starter?
The maximum IEC operating current is 50 A.
What are the starting time and duty limits?
It supports a starting time up to 12 seconds and a maximum of 30 operations per hour.
Is this an open or enclosed starter?
It is an open-frame star-delta starter.
What is the UL/CSA horsepower rating at 480 V?
It is rated at 30 HP at 480 V under UL/CSA.
Safety note: Install and commission only by qualified personnel. Isolate power before work, follow the manufacturer’s instructions, and comply with local regulations and site safety procedures.
| Manufacturer Part Number | BFA03270400 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85371098 |
| Barcode | 8013975217047 |
| Coil Voltage | 400V |
