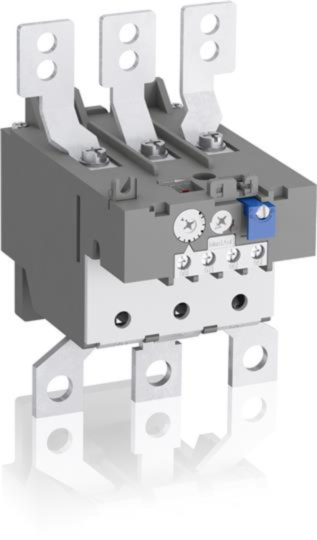

ABB ta200du-110 thermal overload relay 80a - 110a
MPN: 1SAZ421201R1002
Alt. SKU: TA200DU-110
Special Price
£246.97
£205.81
Regular Price
£379.96
Why Choose the TA200DU-110 [1SAZ421201R1002]
The TA200DU-110 thermal overload relay provides cost-effective electromechanical protection for main motor circuits. Designed to deliver dependable and rapid response to overloads and phase failures, it features a trip class 10A rating for precise motor safeguarding. Key technical attributes include temperature compensation, a normally closed trip contact, a normally open signal contact, and selectable automatic or manual reset options. The relay incorporates a trip-free mechanism, as well as STOP and test functions, with clear trip indication for straightforward diagnostics. It is designed for direct mounting onto corresponding block contactors, with single mounting kits available as accessories to ensure seamless installation.
Technical Specification
- Function: Thermal overload relay with trip class 10A, automatic/manual reset, trip-free mechanism, STOP and Test functions.
- Rated Current: 80 to 110 A setting range, 110 A operational current.
- Voltage Ratings: Main circuit up to 690 V AC / 440 V DC; Auxiliary circuit up to 500 V AC / 440 V DC.
- Contact Configuration: 3 poles protected; 1 NC trip contact and 1 NO signal contact.
- Insulation Voltage: Rated insulation voltage 690 V.
- Impulse Withstand Voltage: 6 kV for both main and auxiliary circuits.
- Degree of Protection: Housing IP20; main circuit terminals IP00.
- Terminal Type and Capacity: Main circuit terminals accept rigid or flexible cables 25 to 120 mm²; auxiliary circuit terminals accept flexible or ferruled cables 0.75 to 2.5 mm².
- Tightening Torque: Main circuit 25 N·m; auxiliary circuit 1 to 1.3 N·m.
- Mounting: Suitable for direct mounting to corresponding block contactors (A145, A185, AF145, AF185, AF190, AF205).
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the trip class of the TA200DU-110 thermal overload relay?
The trip class of the TA200DU-110 thermal overload relay is 10A.
What is the rated current range for this overload relay?
The rated current setting range is 80 to 110 A, with a maximum operational current of 110 A.
What voltage ratings does the TA200DU-110 support?
It supports main circuit voltage up to 690 V AC / 440 V DC and auxiliary circuit voltage up to 500 V AC / 440 V DC.
What types of cables can be connected to the terminals?
Main circuit terminals accept rigid or flexible cables from 25 to 120 mm², while auxiliary circuit terminals accept flexible or ferruled cables from 0.75 to 2.5 mm².
How is the TA200DU-110 mounted?
It is suitable for direct mounting to corresponding block contactors such as A145, A185, AF145, AF185, AF190, and AF205.
What is the degree of protection for this relay?
The housing has an IP20 degree of protection, while the main circuit terminals have an IP00 rating.
What safety standards does the TA200DU-110 comply with?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 1SAZ421201R1002 |
|---|---|
| Product Image | For Illustration Purposes Only |
| Amp Range | 80A - 110A |
| Manufacturer | ABB |
| Alternative Product SKU | TA200DU-110 |
| Barcode | 4013614286025 |
| Product Lead Time | Please contact us for a delivery time |
