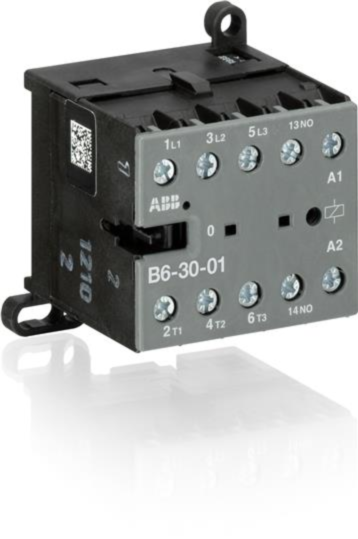

GJL1211001R0012 b6-30-01-02 42ac mini ABB Contactor 4kw
MPN: GJL1211001R0012
Alt. SKU: B6-30-01-02
Special Price
£24.62
£20.52
Regular Price
£37.88
Why Choose the B6-30-01-02 [GJL1211001R0012]
The B6-30-01 mini contactor is a compact 3 pole contactor with 1 auxiliary contact and screw terminals. They are ideally suited for applications where reliability is a must and space is at a premium. Mini contactors are used in residential buldings, commercial buildings and industrial applications for the control of single or three-phase loads up to 4 kW (AC-3) and 20 A (AC-1) or switching of control signals. Further features are the silent coil, a switch position indication and the integrated possibility for rail or wall mounting.
Technical Specification
- Function: Compact 3-pole mini contactor with 1 NC auxiliary contact for control of single or three-phase loads up to 4 kW (AC-3) and 20 A (AC-1).
- Rated Operational Voltage: Main circuit up to 690 V AC and 220 V DC; auxiliary circuit up to 690 V AC and 250 V DC.
- Rated Operational Current: AC-1: up to 20 A; AC-3: up to 9 A at 400 V; DC-13: up to 2.5 A at 24 V.
- Contact Configuration: 3 NO main contacts, 1 NC auxiliary contact.
- Insulation and Impulse Ratings: Rated insulation voltage 690 V; impulse withstand voltage 6 kV (main and auxiliary circuits).
- Degree of Protection: IP20 at auxiliary, control, and main circuit terminals.
- Terminal Type and Capacity: Screw terminals; flexible and rigid conductors from 1 to 4 mm².
- Mechanical Durability: Rated for 10 million operations.
- Mounting: DIN rail TH35-15 and TH35-7.5 or wall mounting.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the maximum load capacity of the B6-30-01 mini contactor?
The B6-30-01 mini contactor can control single or three-phase loads up to 4 kW (AC-3) and 20 A (AC-1).
What is the rated operational voltage for this contactor?
The rated operational voltage is up to 690 V AC and 220 V DC for the main circuit, and up to 690 V AC and 250 V DC for the auxiliary circuit.
How is the B6-30-01 mini contactor mounted?
The contactor can be mounted on a DIN rail (TH35-15 and TH35-7.5) or directly on a wall.
What type of terminals does the B6-30-01 mini contactor have?
It features screw terminals suitable for flexible and rigid conductors ranging from 1 to 4 mm².
What is the degree of protection for the B6-30-01 mini contactor?
The contactor has an IP20 degree of protection at the auxiliary, control, and main circuit terminals.
What is the mechanical durability of the B6-30-01 mini contactor?
The mini contactor is rated for 10 million operations.
What standards and approvals does the B6-30-01 mini contactor conform to?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | GJL1211001R0012 |
|---|---|
| HS Code | 85365080 |
| Manufacturer | ABB |
| Country of Manufacture | Germany |
| Alternative Product SKU | B6-30-01-02 |
| Packed Quantity | 1 |
| KW Rating | 4kW |
| Range | B6 |
| Inbuilt Aux | 1 N/C |
| Barcode | 4013614051142 |
