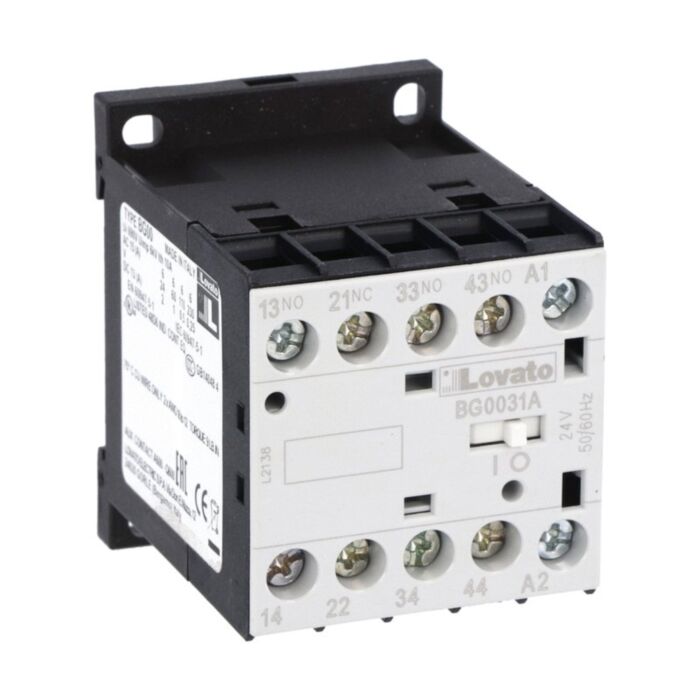

11BG0031A230 - CONTROL RELAY BG00.31A 230V 50-60HZ
MPN: 11BG0031A230
Alt. SKU: BG0031A230
Special Price
£25.72
£21.43
Regular Price
£42.85
Why Choose the 11BG0031A230?
The Lovato BG00 control relay delivers reliable switching for industrial control circuits with a 230 VAC 50/60 Hz coil and a 4‑pole 3NO+1NC contact arrangement. Rated insulation voltage Ui 690 V with 6 kV impulse withstand and Ith 10 A, it provides robust performance in demanding panels. Mount quickly on 35 mm DIN rail or by screw fixing to suit your build preferences.
Engineered for longevity, this relay offers 20,000,000 mechanical cycles and operates from −50 to +70 °C, up to 3000 m altitude (pollution degree 3). Terminal screws accept a tightening torque of 0.8 to 1 Nm for secure connections. Conforms to IEC/EN 60947-1 and 60947-5-1, plus UL 60947-1/-5-1 and CSA C22.2 No 60947-1/-5-1, supporting consistent specification across projects.
Key Benefits
- 230 VAC 50/60 Hz coil for standard control supplies
- 4‑pole 3NO+1NC contacts enable flexible control logic
- High insulation: Ui 690 V and impulse withstand 6 kV
- Ith 10 A rated thermal current for robust duty
- Wide range −50 to +70 °C; altitude capability to 3000 m
- 20,000,000 mechanical cycles for long service life
- Screw or 35 mm DIN rail mounting simplifies integration
Technical Specification
- Product type designation: BG00
- Number of poles: 4
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 10 A
- Terminal tightening torque: 0.8 to 1 Nm
- Weight: 200 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to +70 °C
- Storage temperature: -60 to +80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BG00 control relay, 230 VAC coil, 3NO+1NC (SKU 11BG0031A230)
- Manufacturer installation and safety information
- Downloadable product datasheet via product page
Applications
- Industrial control panels and automation cabinets
- Auxiliary switching and signalling circuits
- Interlocking and logic functions in machinery control
- HVAC, pump and process control panels
- General-purpose panel building and maintenance
Frequently Asked Questions
What is the coil voltage and frequency for this control relay?
The coil is rated 230 VAC at 50/60 Hz for standard AC control circuits.
How many and what type of contacts does it have?
It provides four poles with 3 normally open and 1 normally closed contacts.
What mounting options are available?
It supports screw mounting or 35 mm DIN rail installation for easy panel fit.
What environmental limits does it support?
It operates from −50 to +70 °C and up to 3000 m altitude, pollution degree 3.
Which standards does this relay conform to?
IEC/EN 60947-1 and 60947-5-1, plus UL 60947-1/-5-1 and CSA C22.2 No 60947-1/-5-1.
Safety note: Ensure installation by qualified personnel. Isolate power before wiring, use the correct 230 VAC coil supply, tighten terminals to 0.8–1 Nm, and operate within the specified environmental ratings.
| Manufacturer Part Number | 11BG0031A230 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975080511 |
| Alternative Product SKU | BG0031A230 |
| Coil Voltage | 230V |
