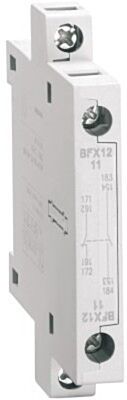

BFX1202 Lovato contactor side mount auxiliary contact 2nc
MPN: BFX1202
Special Price
£16.40
£13.67
Regular Price
£27.34
Why Choose the BFX1202?
The Lovato BFX1202 auxiliary contact is a side-mount accessory for BF… series contactors, delivering reliable 2NC mirror contacts via secure screw terminals. Rated Ui 690 V and Uimp 6 kV with Ith 10 A, it suits demanding control circuits. A wide -50 to +70 °C operating range and 0.8–1 Nm tightening torque ensure dependable performance in industrial panels.
Designed for BF00… to BF150… contactors, the compact 44 g BFX1202 carries Lovato’s BFX12 designation and meets IEC/EN, UL and CSA standards, including IEC/EN 60947-5-1. Simple side mounting accelerates assembly and preserves panel space, while mirror contacts provide precise status feedback for interlocking and safety circuits. Robust construction and 3000 m altitude capability support consistent operation across diverse installations.
Key Benefits
- Side mounting for quick installation on BF… series contactors.
- 2NC mirror contacts for reliable status feedback and interlocking.
- Screw terminals with 0.8–1 Nm tightening torque for secure wiring.
- High insulation rating Ui 690 V; impulse withstand 6 kV.
- Rated Ith 10 A to suit robust control applications.
- Wide operating temperature range -50 to +70 °C.
- Lightweight 44 g design helps optimise panel space.
- Conforms to IEC/EN, UL and CSA standards for assured compliance.
Technical Specification
- Product type designation: BFX12
- Number of poles: 2
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 10 A
- Terminal tightening torque: 0.8 to 1 Nm
- Weight: 44 g
- Operating temperature: -50 to +70 °C
- Storage temperature: -60 to +80 °C
- Max altitude: 3000 m
What’s Included
- Lovato BFX1202 auxiliary contact (2NC, side mounting)
- Installation instructions
- Manufacturer datasheet (downloadable)
Applications
- Side-mount auxiliary contacts for Lovato BF00… to BF150… contactors
- Status feedback and interlocking in control and safety circuits
- Industrial control panels requiring 2NC mirror-contact signalling
- Harsh-temperature installations from -50 to +70 °C
- High-altitude sites up to 3000 m
Frequently Asked Questions
What contact configuration does the BFX1202 provide?
It provides 2NC auxiliary contacts and offers a mirror contact function on BF00, BF09… and BF150 series contactors.
Which contactors is the BFX1202 compatible with?
It is designed for Lovato BF00…; BF09…; BF150… series contactors.
How is the BFX1202 mounted and wired?
It mounts on the side of the contactor and uses screw terminals tightened to 0.8–1 Nm.
What are the key electrical ratings?
Ui is 690 V, Uimp is 6 kV, and Ith is 10 A.
What environmental limits and standards apply?
Operating temperature is -50 to +70 °C with max altitude 3000 m, and it conforms to IEC/EN, UL and CSA 60947 standards.
Safety note: Install and maintain only by qualified personnel. Isolate power before work, follow the specified 0.8–1 Nm terminal torque, and adhere to relevant standards and manufacturer instructions.
| Manufacturer Part Number | BFX1202 |
|---|---|
| HS Code | 85365080 |
| Manufacturer | Lovato |
| Auxillaries | 2N/C |
| Barcode | 8013975179741 |
