11B125024220 - 3P CONTACTOR B1250.24 220/240
MPN: 11B125024220
Alt. SKU: B125024220
Why Choose the 11B125024220?

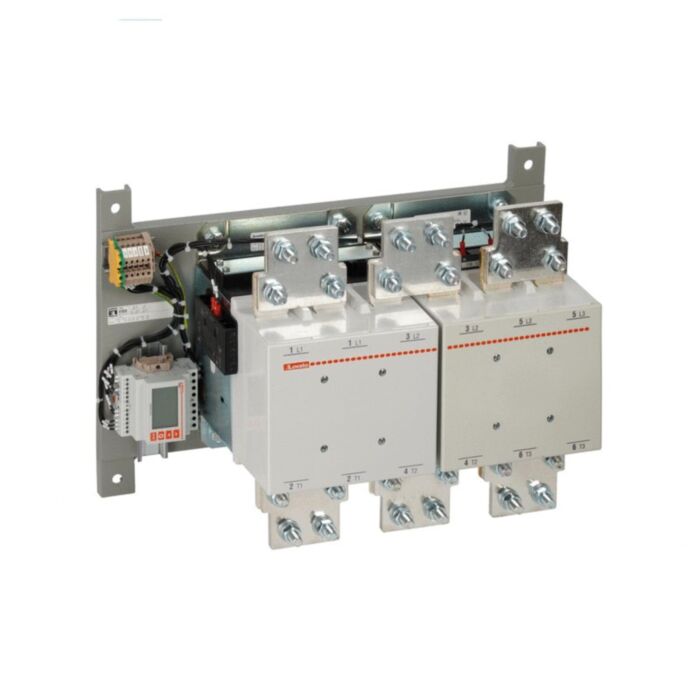

Engineered for high-current switching, the Lovato B1250 three‑pole contactor delivers an IEC operating current Ith (AC1) of 1250 A with a 220–240 VAC 50/60 Hz AC coil. Built‑in 2NO+4NC auxiliary contacts support flexible signalling and interlocks, while screw mounting ensures a secure installation. With a rated insulation voltage Ui of 690 V and 8 kV impulse withstand, it provides robust performance in power distribution and industrial control applications.
Designed to endure, the B1250 offers a mechanical life of 5,000,000 cycles and operates from −50 to +60 °C, with storage from −60 to +80 °C and use up to 3000 m altitude (pollution degree 3). Terminal tightening torque is 35 Nm, and the unit weighs 4820 g. Conformity to IEC/EN 60947-1/-4-1, UL and CSA standards underpins safety and reliability across demanding installations.
Key Benefits
- High current capacity: 1250 A Ith (AC1) for demanding loads.
- Reliable switching with three poles and AC coil 50/60 Hz.
- 220–240 VAC rated coil simplifies control circuit integration.
- Built-in 2NO+4NC auxiliaries for versatile signalling and interlocks.
- Robust insulation: Ui 690 V and 8 kV impulse withstand.
- Wide operating temperature from -50 to +60 °C for harsh environments.
- Long mechanical life rated to 5,000,000 operations for durability.
- Screw mounting with 35 Nm terminal torque for secure connections.
Technical Specification
- Product type designation: B1250
- Number of poles: 3
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 8 kV
- Ith (IEC): 1250 A
- Terminal tightening torque: 35 to 35 Nm
- Weight: 4820 g
- Mechanical life: 5000000 cycles
- Operating temperature: -50 to 60 °C
- Storage temperature: -60 to 80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato B1250 three-pole contactor, 220–240VAC coil (SKU 11B125024220)
- Built-in 2NO+4NC auxiliary contacts
- Installation and safety instructions
Applications
- Main switching of high-current AC1 resistive loads
- Power distribution and switchboard assemblies
- Industrial control panels requiring 3-pole contactors
- Infrastructure and process plant with wide temperature ranges
Frequently Asked Questions
What coil voltage and frequency does this contactor use?
The AC coil is rated 220…240 V at 50/60 Hz.
How many poles and auxiliary contacts are provided?
It is a three-pole device with 2NO+4NC built-in auxiliary contacts.
What is the IEC operating current rating (AC1)?
The IEC operating current Ith (AC1) is 1250 A.
Which standards and approvals does it meet?
It conforms to IEC/EN 60947-1 and 60947-4-1, UL 60947-1/-4-1, and CSA C22.2 No. 60947-1/-4-1.
What are the operating and storage temperature ranges?
Operating temperature is −50 to +60 °C; storage is −60 to +80 °C.
Safety note: Install and maintain only by qualified personnel with power isolated. Tighten terminals to 35 Nm and operate strictly within the stated electrical and environmental ratings and relevant standards.
| Manufacturer Part Number | 11B125024220 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975045596 |
| Alternative Product SKU | B125024220 |
