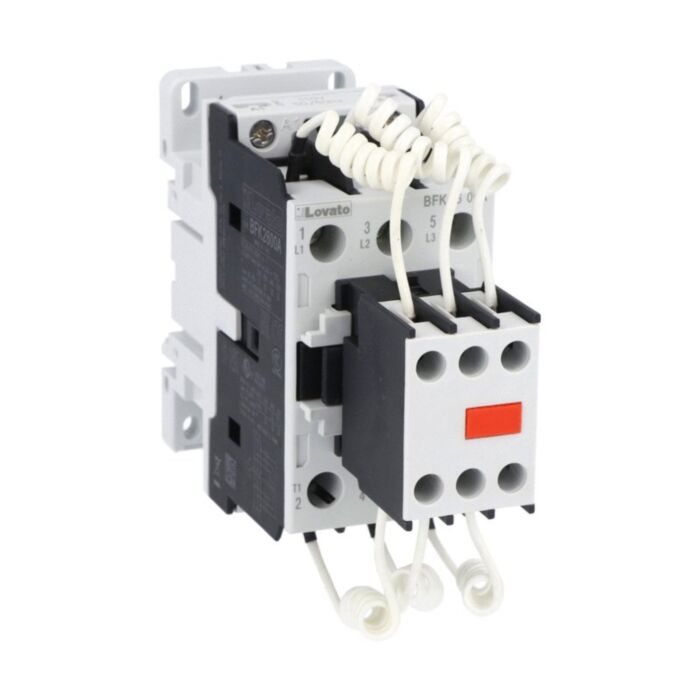

BFK2600A230 - 3P CONTACTOR 20KVAR 230V 50/60HZ

Why Choose the BFK2600A230?

Lovato BFK2600A230 is a contactor for power factor correction with AC control circuit, engineered for reliable capacitor switching in low-voltage networks. This 3-pole device delivers up to 20 kvar at 400 V and features a 230 VAC 50/60 Hz coil for straightforward control integration. Compact BFK26 construction, limiting resistors included, and screw or 35 mm DIN-rail mounting make installation simple in new builds or retrofits.

Built for endurance and safety, the BFK26 series offers 690 V rated insulation, 6 kV impulse withstand, and 45 A Ith. With a mechanical life of 20,000,000 cycles, operating temperature from -50 to 70 °C and use up to 3000 m altitude, it suits demanding sites. Conforms to IEC/EN/BS 60947 and UL/CSA standards, with terminal torque 2.5–3 Nm for secure connections.

Key Benefits

• Reliable capacitor switching for power factor correction applications.
• 20 kvar at 400 V for mid-sized PFC stages.
• 230 VAC 50/60 Hz coil simplifies control integration.
• Screw or 35 mm DIN-rail mounting for flexible installation.
• High endurance: 20,000,000 mechanical cycles for long service life.
• Robust insulation 690 V and 6 kV impulse withstand.
• Wide operating range: -50 to 70 °C, up to 3000 m.

Technical Specification

• Product type designation: BFK26
• Number of poles: 3
• Rated insulation voltage Ui (IEC/EN): 690 V
• Rated impulse withstand voltage Uimp: 6 kV
• Ith (IEC): 45 A
• Terminal tightening torque: 2.5 to 3 Nm
• Weight: 400 g
• Mechanical life: 20000000 cycles
• Operating temperature: -50 to 70 °C
• Storage temperature: -60 to 80 °C
• Max altitude: 3000 m
• Pollution degree: 3

What’s Included

• Lovato BFK2600A230 contactor (BFK26 series) with limiting resistors
• Installation and safety instructions
• Manufacturer's documentation/datasheet

Applications

• Low-voltage capacitor banks for power factor correction
• Fixed or automatic PFC stages up to 20 kvar at 400 V
• Industrial control panels requiring 230 VAC coil operation
• DIN-rail or screw-mounted power factor correction assemblies

Safety note: Install by qualified personnel in accordance with IEC/EN/BS 60947 and the manufacturer's instructions. Observe rated voltages, specified tightening torque (2.5–3 Nm), and environmental limits during use.
