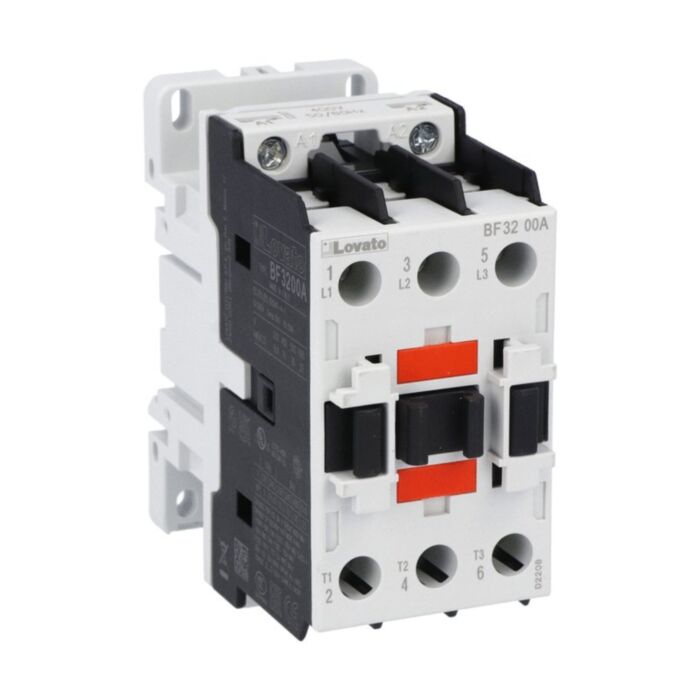

BF3200A12060 - 3P CONTACTOR 32A AC3 120V 60HZ
MPN: BF3200A12060
Special Price
£87.01
£72.51
Regular Price
£145.02
Why Choose the BF3200A12060?
Designed for dependable motor control, the Lovato BF3200A12060 three-pole contactor delivers 32 A AC-3 performance at 400 V with a 120 VAC 60 Hz coil. The BF32-designated unit suits screw or 35 mm DIN rail mounting, simplifying panel integration. With IEC ratings clearly defined, this SKU provides a robust, repeatable switching solution for industrial control panels and machinery where reliable AC contactor operation is essential.
Built to withstand demanding environments, it offers Ui 690 V and Uimp 6 kV, a mechanical life of 20,000,000 cycles, and terminal tightening torque of 2.5 to 3 Nm. Operating from -50 to 70 °C and usable up to 3000 m altitude (pollution degree 3), this contactor carries UL/CSA ratings, including 20 HP at 480 V, and conforms to IEC/EN/BS 60947-1 and 60947-4-1.
Key Benefits
- 32 A AC-3 at 400 V for reliable motor switching.
- 120 VAC 60 Hz coil for straightforward control circuit integration.
- Screw or 35 mm DIN rail mounting for flexible panel layouts.
- High insulation and impulse withstand: Ui 690 V, Uimp 6 kV.
- Robust mechanical endurance, rated 20,000,000 operating cycles.
- Wide operating temperature range from -50 to 70 °C.
- UL/CSA recognised, including 20 HP at 480 V.
Technical Specification
- Product type designation: BF32
- Number of poles: 3
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 56 A
- Terminal tightening torque: 2.5 to 3 Nm
- Weight: 420 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to 70 °C
- Storage temperature: -60 to 80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BF3200A12060 three-pole contactor (120 VAC, 60 Hz coil)
- Quick start/installation leaflet
- Product datasheet and conformity information
- Protective packaging
Applications
- Three-phase motor control up to 16 kW at 400 V (AC-3).
- General-purpose switching of AC-1 loads up to 56 A.
- Industrial control panels using 35 mm DIN rail or screw mounting.
- Projects requiring UL/CSA ratings, including 20 HP at 480 V.
- Installations within -50 to 70 °C and up to 3000 m altitude.
Frequently Asked Questions
What is the AC-3 motor load rating at 400 V?
It is rated 32 A, equivalent to 16 kW at 400 V AC-3.
What coil voltage and frequency does the unit require?
The coil is 120 V AC at 60 Hz.
How is the contactor mounted in a panel?
It supports screw mounting or 35 mm DIN rail mounting.
What environmental limits does it support?
Operating temperature is -50 to 70 °C, and it is suitable up to 3000 m altitude with pollution degree 3.
Which standards and approvals does it meet?
It conforms to IEC/EN/BS 60947-1 and 60947-4-1, plus UL and CSA equivalents.
Safety note: Install and commission only by qualified personnel. Isolate power before work, tighten terminals to 2.5 to 3 Nm, and follow applicable IEC/EN/BS, UL, and CSA standards.
| Manufacturer Part Number | BF3200A12060 |
|---|---|
| Manufacturer | Lovato |
| Barcode | 8013975165102 |
| Coil Voltage | 120V |
