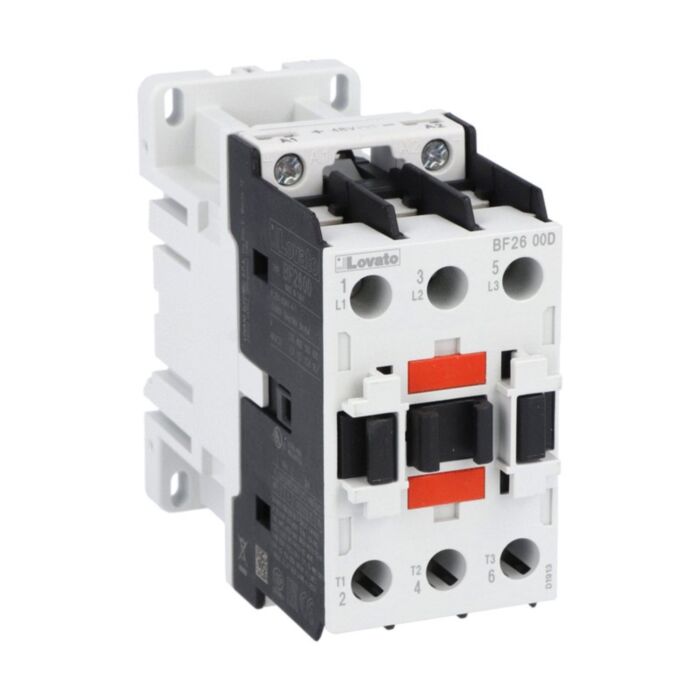

BF2600D060 - 3P CONTACTOR 26A AC3 60VDC
MPN: BF2600D060
Special Price
£123.82
£103.18
Regular Price
£206.36
Why Choose the BF2600D060?
Built for reliable motor switching, the Lovato BF2600D060 three-pole contactor pairs a 60V DC coil with AC-3 performance of 26A (13 kW) at 400V. With a rated insulation voltage of 690V and impulse withstand of 6 kV, it suits demanding industrial control panels. The compact BF26 designation installs quickly on 35mm DIN rail or by screws for flexible panel layouts.
Engineered for longevity and harsh environments, this BF26 designation contactor offers 20,000,000 mechanical operations, an operating range of -50 to 70 °C and pollution degree 3 suitability up to 3000 m altitude. Terminals tighten to 2.5 to 3 Nm for secure connections. Certified to IEC/EN/BS 60947 and UL/CSA standards, it delivers 15 HP at 480V (UL/CSA) and Sustainability certification for dependable, compliant installations.
Key Benefits
- Robust AC-3 26A (13 kW) motor switching at 400V.
- 60V DC coil for precise, reliable control response.
- High insulation rating Ui 690 V; Uimp 6 kV.
- Wide operating temperature -50 to 70 °C for tough sites.
- Long mechanical life: 20,000,000 cycles for reduced maintenance.
- Flexible screw or 35mm DIN rail mounting options.
- Compliance with IEC/EN/BS, UL and CSA standards.
- Secure connections with 2.5 to 3 Nm terminal torque.
Technical Specification
- Product type designation: BF26
- Number of poles: 3
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 45 A
- Terminal tightening torque: 2.5 to 3 Nm
- Weight: 560 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to 70 °C
- Storage temperature: -60 to 80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BF2600D060 3-pole contactor
- Manufacturer product documentation
- Protective packaging
Applications
- AC-3 motor control up to 26A (13 kW) at 400V
- Industrial control panels requiring 60V DC coil actuation
- General power switching within Ui 690 V limits
- HVAC fans, pumps and conveyors within rating
Frequently Asked Questions
What is the coil voltage and type?
It uses a DC coil rated at 60 V for control.
What are the AC-3 ratings at 400V?
The contactor is rated 26A / 13Kw (AC-3) at 400V.
How can this contactor be mounted?
It can be mounted by screws or on a 35mm DIN rail.
Which standards does it conform to?
It conforms to IEC/EN/BS 60947-1 and 60947-4-1, UL 60947-1 and 60947-4-1, and CSA C22.2 n° 60947-1 and 60947-4-1.
What is the operating temperature range?
The operating range is -50 to 70 °C, suitable for harsh environments.
Safety note: Installation and maintenance must be performed by qualified personnel. Isolate all power sources before work, verify the 60 V DC coil matches the control circuit, and tighten terminals to 2.5 to 3 Nm in accordance with applicable standards.
| Manufacturer Part Number | BF2600D060 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975166567 |
| Coil Voltage | 60VDC |
