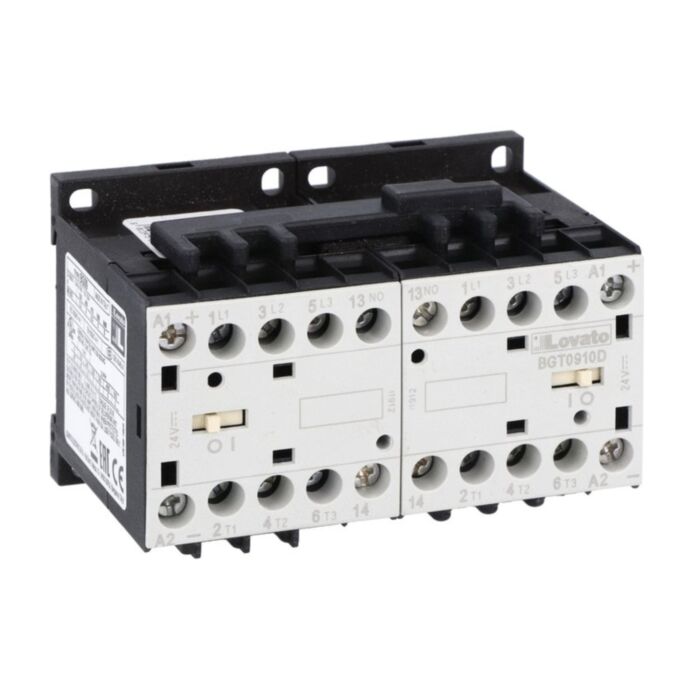

11BGT0910D048 - REVERSING CONTACTOR BGT09.10D 48VDC

Why Choose the 11BGT0910D048?

Lovato’s reversing contactor assembly, SKU 11BGT0910D048, delivers dependable motor direction control with a 48VDC DC coil and a built-in interlock using power wiring only. Rated 9A AC3 in DC with 4kW capability, this open frame unit integrates readily into control panels. The BGT09 designation identifies it within Lovato’s BGT series range.

Backed by IEC/EN 60947-1 and 60947-4-1 conformity and UL508 / CSA C22.2 n° 14, it meets recognised international standards. With a 5 HP rating at 480V (UL/CSA) and a manageable 445 g weight, it integrates smoothly into industrial control builds. Ideal where a 48VDC coil is required and built-in power-wired interlocking is preferred.

Key Benefits

• 48VDC DC coil for straightforward control integration.
• Built-in interlock with power wiring only simplifies installation.
• Open frame configuration suited to panel-mounted assemblies.
• 9A AC3 in DC and 4 kW ratings for reversing applications.
• UL/CSA 5 HP rating at 480V supports common motor circuits.
• Conforms to IEC/EN 60947-1, 60947-4-1, UL508 and CSA standards.
• Lightweight 445 g construction aids handling during assembly.

Technical Specification

• Product type designation: BGT09
• Weight: 445 g

What’s Included

• Lovato 11BGT0910D048 reversing contactor assembly (open frame)
• Built-in interlock with power wiring only (pre-installed)
• Manufacturer product datasheet
• Basic installation and safety information

Applications

• Motor reversing control in industrial panels.
• Control systems needing a 48VDC DC coil and power-wired interlock.
• Installations up to 5 HP at 480V per UL/CSA rating.
• Projects designed to IEC/EN 60947 and UL508 requirements.

Safety note: Install and commission only by qualified personnel in accordance with IEC/EN and UL/CSA standards and the manufacturer’s documentation. Isolate all power before wiring or servicing.
