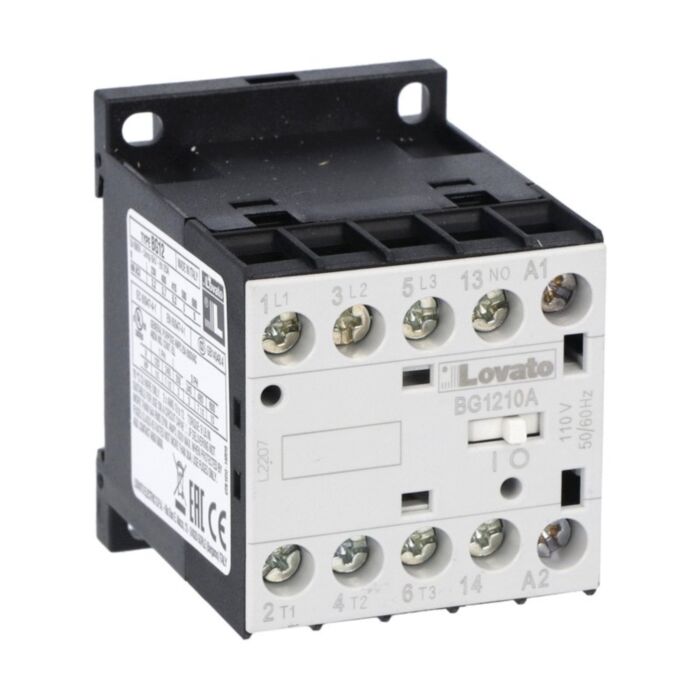

11BG1210A230 Lovato contactor 3 pole AC3:12A 5.7kw 230vac coil 1no aux
MPN: 11BG1210A230
Alt. SKU: BG1210A230
Special Price
£35.12
£29.27
Regular Price
£58.54
Why Choose the 11BG1210A230?
Engineered for reliable motor and load control, the Lovato BG12 three-pole contactor (SKU 11BG1210A230) delivers 12A AC3 at 400V and 20A Ith (AC1). Its 230VAC 50/60Hz AC coil and built-in 1NO auxiliary contact simplify control circuits, while screw or 35mm DIN rail mounting speeds installation. With 690V Ui and 6kV Uimp ratings, it suits demanding industrial panels.
Built to last, this contactor offers 20,000,000 mechanical cycles and dependable operation from -50 to +70 °C, up to 3000 m altitude. Terminal tightening torque is 0.8 to 1 Nm for secure connections. Rated to Pollution Degree 3 and compliant with IEC/EN, UL and CSA standards, it supports 7.5 HP at 480V (UL/CSA), making it a robust choice for OEMs and panel builders.
Key Benefits
- 12A AC3 at 400V for reliable motor switching.
- 230VAC 50/60Hz coil simplifies control across standard supplies.
- Three-pole design with 1NO auxiliary for flexible circuits.
- Screw or 35mm DIN rail mounting for fast installation.
- High dielectric strength: Ui 690 V, Uimp 6 kV.
- Wide operating temperature range -50 to +70 °C.
- Long mechanical life rated at 20,000,000 cycles.
Technical Specification
- Product type designation: BG12
- Number of poles: 3
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 20 A
- Terminal tightening torque: 0.8 to 1 Nm
- Weight: 200 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to +70 °C
- Storage temperature: -60 to +80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BG12 three-pole contactor, 230VAC coil (SKU 11BG1210A230)
- Integrated 1NO auxiliary contact
- Product datasheet/documentation
- Protective packaging
Applications
- Motor starters and reversing circuits within AC3 12A at 400V limits
- General power switching up to 20A AC1
- HVAC, pumps, fans and conveyors control panels
- OEM machinery and industrial automation panels
- Distribution boards requiring DIN rail mounted contactors
Frequently Asked Questions
What is the coil voltage and frequency?
It has a 230VAC AC coil rated for 50/60Hz operation.
How many poles and what auxiliary contacts does it have?
It’s a three-pole contactor with a built-in 1NO auxiliary contact.
What are its motor duty ratings?
IEC AC3 at 400V is 12A / 5.7kW; UL/CSA at 480V is 7.5 HP.
How is it mounted in a panel?
It supports screw mounting or 35mm DIN rail mounting.
Which standards does it comply with?
IEC/EN 60947-1 and 60947-4-1, UL 60947-1 and 60947-4-1, and CSA C22.2 n° 60947-1 and 60947-4-1.
Safety note: Install and commission only by qualified personnel. Isolate power before work, tighten terminals to 0.8–1 Nm, and operate within the specified ratings and environmental limits.
| Manufacturer Part Number | 11BG1210A230 |
|---|---|
| HS Code | 85365080 |
| Manufacturer | Lovato |
| Alternative Product SKU | BG1210A230 |
| KW Rating | 5.7kW |
| Number of Poles | 3 Pole |
| Coil Voltage | 230VAC |
| AC3 Amperage | 12A |
| AC1 Amperage | 20A |
| Auxillaries | 1NO |
| Barcode | 8013975080153 |
