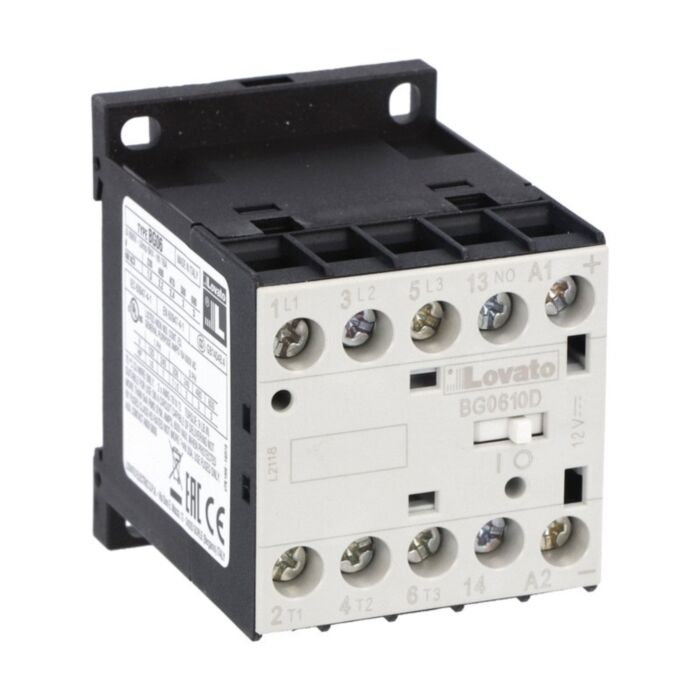

11BG0610D024 - 3P MINICONTACTOR BG06.10D 24DC
MPN: 11BG0610D024
Alt. SKU: BG0610D024
Special Price
£42.72
£35.60
Regular Price
£71.21
Why Choose the 11BG0610D024?
Engineered by Lovato, the BG06 three-pole contactor (SKU 11BG0610D024) delivers dependable AC-3 switching at 6 A, 400 V, with a 24 VDC coil and a built-in 1NO auxiliary contact. It mounts quickly on 35 mm DIN rail or via screws and is designed for seamless integration in control panels. Conforms to IEC/EN 60947 and UL/CSA standards for assured performance and compliance.
With a rated insulation voltage of 690 V and 6 kV impulse withstand, this BG06 contactor is built for demanding environments. It operates from –50 to +70 °C up to 3000 m altitude, offers a mechanical life of 20,000,000 cycles, and features 0.8–1 Nm terminal tightening torque. Pollution degree 3 construction supports reliable service across a wide range of industrial applications.
Key Benefits
- Reliable AC-3 switching: 6 A at 400 V for motors.
- 24 VDC coil for straightforward DC control circuits.
- Built-in 1NO auxiliary contact for simple signalling.
- DIN rail or screw mounting for flexible installation.
- Broad operating temperature from –50 to +70 °C.
- High mechanical life of 20,000,000 cycles.
- Robust insulation: Ui 690 V, Uimp 6 kV.
- UL/CSA horsepower rating of 3 HP at 480 V.
Technical Specification
- Product type designation: BG06
- Number of poles: 3
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 16 A
- Terminal tightening torque: 0.8 to 1 Nm
- Weight: 230 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to +70 °C
- Storage temperature: -60 to +80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BG06 three-pole contactor (SKU 11BG0610D024)
- Built-in 1NO auxiliary contact
- Screw terminal connections for power and control
- Manufacturer datasheet (available online)
Applications
- Switching AC-3 motor loads up to 2.2 kW at 400 V
- Industrial control panels and OEM machinery
- General-purpose power switching and automation circuits
- HVAC, pumps and fans control duties
Frequently Asked Questions
What is the coil voltage and type?
It has a 24 V DC coil (DC coil).
How many poles and auxiliary contacts does it have?
It is a three-pole contactor with one built-in 1NO auxiliary contact.
How can this contactor be mounted?
It supports 35 mm DIN rail mounting or screw mounting.
Which standards does this contactor comply with?
It conforms to IEC/EN 60947-1/-4-1, UL 60947-1/-4-1, and CSA C22.2 equivalents.
What is the operating temperature range?
The specified operating temperature is from –50 to +70 °C.
Safety note: Install and commission only by qualified personnel. Observe all ratings, tighten terminals to 0.8–1 Nm, and isolate power before wiring or maintenance. Operate within the specified environmental limits.
| Manufacturer Part Number | 11BG0610D024 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975082645 |
| Alternative Product SKU | BG0610D024 |
| Coil Voltage | 24DC |
