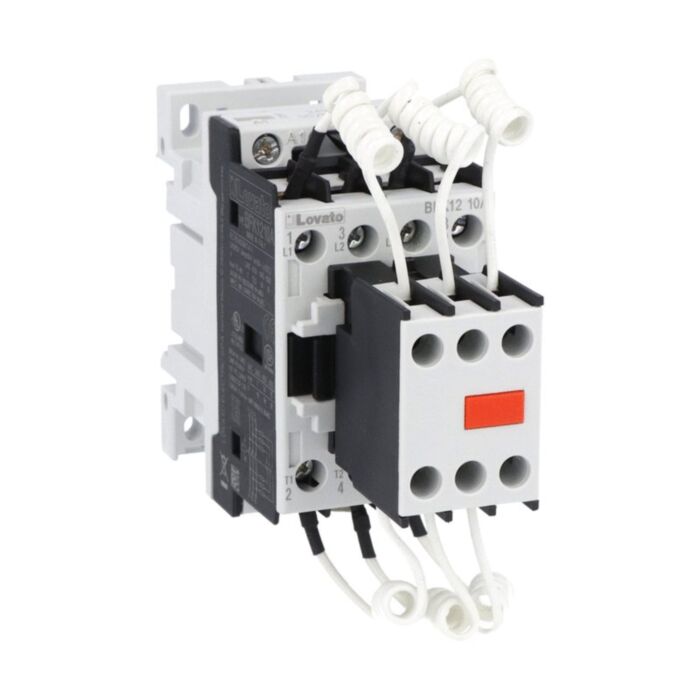

BFK1210A024 - 3P CONTACTOR 12 5KVAR 24V 50/60HZ
MPN: BFK1210A024
Special Price
£70.30
£58.58
Regular Price
£117.16
Why Choose the BFK1210A024?
The Lovato BFK1210A024 is a contactor for power factor correction with an AC control circuit, supplied with limiting resistors for reliable capacitor switching. Rated at 12.5 kvar at 400 V, this 3‑pole unit features a 24 VAC 50/60 Hz coil and a built‑in 1NO auxiliary contact. Flexible screw or 35 mm DIN rail mounting streamlines panel integration in new builds and retrofits.
Engineered for durability, the BFK12 series delivers a mechanical life of 20,000,000 cycles, Ui 690 V and Uimp 6 kV, with Ith 28 A for dependable performance. It operates from −50 to +70 °C, up to 3000 m altitude, pollution degree 3, and meets IEC/EN/BS 60947-1/-4-1 plus UL and CSA equivalents, supporting sustainable specification choices.
Key Benefits
- Built-in limiting resistors for smoother capacitor switching and reduced inrush stress.
- 12.5 kvar at 400 V, ideal for compact power factor correction stages.
- 24 VAC 50/60 Hz coil simplifies integration with common AC control circuits.
- 3-pole main contacts with 1NO auxiliary for clear signalling and control.
- Screw or 35 mm DIN rail mounting for fast, flexible panel installation.
- High mechanical life of 20,000,000 cycles for long service reliability.
- Robust insulation ratings: Ui 690 V and Uimp 6 kV withstand surges.
- Wide −50 to +70 °C operating range suits demanding environments and sites.
Technical Specification
- Product type designation: BFK12
- Number of poles: 3
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 28 A
- Terminal tightening torque: 1.5 to 1.8 Nm
- Weight: 418 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to 70 °C
- Storage temperature: -60 to 80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BFK1210A024 PFC contactor with limiting resistors
- Integrated 1NO auxiliary contact
- 24 VAC 50/60 Hz coil (pre-fitted)
- Basic installation and safety information
Applications
- Automatic power factor correction panels and capacitor banks
- Low-voltage capacitor switching at 400 V networks
- Industrial and commercial PFC distribution boards
- OEM PFC modules and control panels
Frequently Asked Questions
What is the IEC operational power at 400 V?
The IEC operational power at 400 V is 12.5 kvar.
What coil voltage and frequency does the BFK1210A024 use?
It has a 24 VAC coil rated for 50/60 Hz operation.
Does this contactor include limiting resistors?
Yes, limiting resistors are included for power factor correction applications.
How is it mounted and how many poles does it have?
It mounts by screw or on a 35 mm DIN rail and has 3 poles.
Which standards does it conform to?
It conforms to IEC/EN/BS 60947-1 and 60947-4-1, plus UL and CSA equivalents.
Safety note: Installation must be performed by a qualified electrician. Isolate the supply and fully discharge capacitors before work, apply specified tightening torques, and follow IEC/EN/BS 60947 and manufacturer guidance.
| Manufacturer Part Number | BFK1210A024 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975163139 |
| Coil Voltage | 24V |
