BFK0910A22060 - 3P CONTACTOR 7 5KVAR 220V 60HZ
MPN: BFK0910A22060
Special Price
£62.65
£52.21
Regular Price
£104.41
Why Choose the BFK0910A22060?

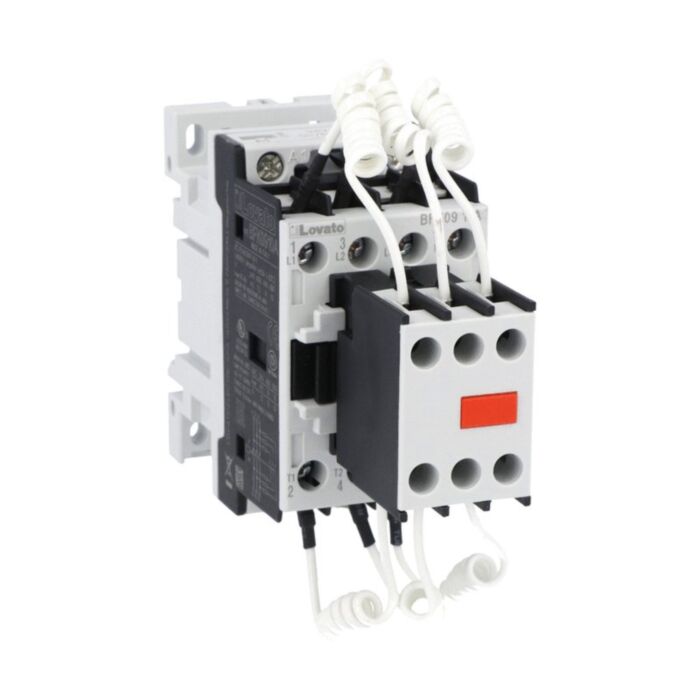

The Lovato BFK0910A22060 is a contactor for power factor correction with an AC control circuit, engineered for reliable capacitor bank switching. With a 220VAC 60Hz coil and integrated limiting resistors, it delivers smooth inrush control and stable operation. Rated 7.5kvar at 400V across three poles with a 1NO auxiliary contact, the BFK0910A22060 supports screw or 35mm DIN rail mounting for fast, tidy installation in control panels.
Built for demanding environments, this BFK09-series device offers Ui 690 V, Uimp 6 kV and Ith 25 A, with a mechanical life of 20,000,000 cycles. It operates from -50 to 70 °C up to 3000 m altitude, pollution degree 3. Conformity with IEC/EN/BS 60947-1 and 60947-4-1, plus UL and CSA standards, ensures confidence when specifying for UK industrial power factor correction applications.
Key Benefits
- Built-in limiting resistors reduce capacitor inrush for smoother engagement.
- 220VAC 60Hz AC coil integrates easily into standard control circuits.
- 7.5kvar at 400V suits typical power factor correction steps.
- Three-pole main contacts with 1NO auxiliary for signalling.
- Dual mounting options: screw fixing or 35mm DIN rail.
- Robust ratings: Ui 690 V, Uimp 6 kV, Ith 25 A.
- Long mechanical life for high cycling reliability in panels.
- Wide operating temperature range, suitable down to -50 °C.
Technical Specification
- Product type designation: BFK09
- Number of poles: 3
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 25 A
- Terminal tightening torque: 1.5 to 1.8 Nm
- Weight: 416 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to 70 °C
- Storage temperature: -60 to 80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BFK0910A22060 contactor with built-in limiting resistors
- Integrated 1NO auxiliary contact
- Protective packaging for transit
Applications
- Power factor correction capacitor banks
- Industrial control panels and PFC cabinets
- LV distribution boards requiring reactive power compensation
- OEM power factor correction modules
Frequently Asked Questions
What coil voltage and frequency does this contactor use?
It has a 220VAC 60Hz AC coil.
Is it suitable for switching capacitor banks for power factor correction?
Yes, it is designed for power factor correction and includes limiting resistors.
What is the maximum IEC operational power at 400V?
The IEC operational power at 400V is 7.5kvar.
How can it be mounted in a panel?
It mounts via screw fixing or on a 35mm DIN rail.
Which standards does it conform to?
It conforms to IEC/EN/BS 60947-1 and 60947-4-1, plus UL and CSA.
Safety note: Installation must be performed by a qualified electrician with power isolated. Ensure capacitor banks are fully discharged and follow all applicable standards and manufacturer instructions.
| Manufacturer Part Number | BFK0910A22060 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975163092 |
| Coil Voltage | 220V |
