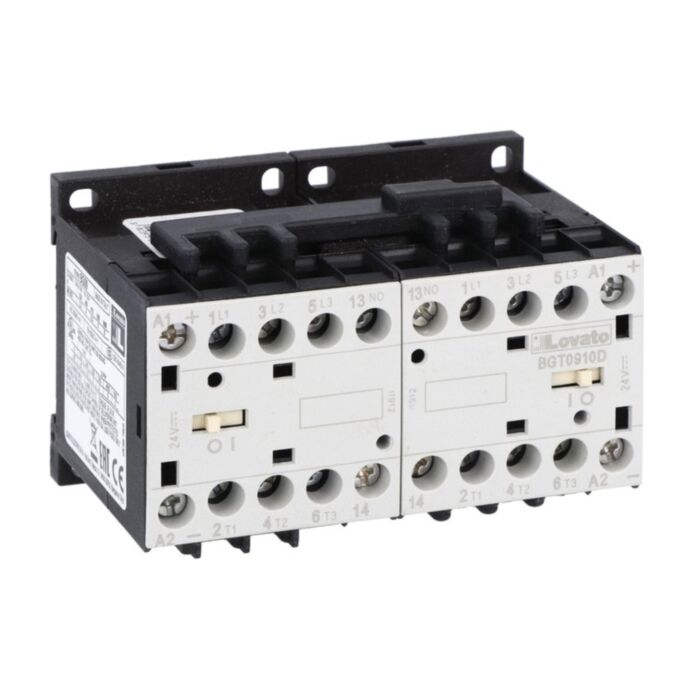

11BGT0910D125 - REVERSING CONTACTOR BGT09.10D 125VDC
MPN: 11BGT0910D125
Alt. SKU: BGT0910D125
Special Price
£171.54
£142.95
Regular Price
£285.90
Why Choose the 11BGT0910D125?
Lovato’s 11BGT0910D125 is a robust reversing contactor assembly designed for dependable motor direction control in industrial panels. Featuring a 125VDC coil and an open frame format, it integrates a built-in interlock (power wiring only) to simplify wiring. Rated 9A AC‑3 in DC with 4kW power capability, it delivers compact performance aligned to demanding applications.
Engineered to recognised standards, this BGT09 assembly conforms to IEC/EN 60947-1, IEC/EN 60947-4-1 and UL508 CSA C22.2 n° 14, and carries a UL/CSA 5HP rating at 480V. Weighing 445 g, it integrates cleanly in control panels. Manufactured by Lovato and supported by Sustainability certification, it offers dependable forward/reverse switching for industrial control systems.
Key Benefits
- Reversing contactor assembly for reliable forward/reverse motor control.
- 125VDC DC coil ensures consistent actuation in DC control circuits.
- Built-in interlock (power wiring only) reduces wiring complexity.
- Open frame construction simplifies panel integration and inspection.
- Rated 9A AC‑3 in DC with 4kW power capability.
- UL/CSA 5HP at 480V for North American compliance.
- Conforms to IEC/EN 60947-1 and 60947-4-1 standards.
- Lightweight 445 g unit supports compact layouts.
Technical Specification
- Product type designation: BGT09
- Weight: 445 g
What’s Included
- Reversing contactor assembly, open frame (BGT09)
- Built-in interlock configured for power wiring only
- Pre-fitted 125VDC DC coil
- Manufacturer documentation and datasheet (online)
Applications
- Forward/reverse control of motors in industrial panels
- Conveyor, pump and fan direction switching
- Machine automation control cabinets requiring compact reversing
- General-purpose motor starters needing DC coil operation
Frequently Asked Questions
What coil voltage does the 11BGT0910D125 use?
It is fitted with a 125VDC DC coil for actuation. Suitable for DC control circuits.
What standards does it conform to?
It conforms to IEC/EN 60947-1, IEC/EN 60947-4-1, and UL508 CSA C22.2 n° 14.
What is the UL/CSA horsepower rating at 480V?
It has a UL/CSA horsepower rating of 5 HP at 480V.
Is this an open-frame assembly with interlock?
Yes, it is open frame with a built-in interlock for power wiring only.
What are its key ratings in DC?
It is rated 9A AC-3 in DC with a 4kW power rating.
Safety note: Installation and commissioning must be performed by a qualified electrician. Isolate and verify de-energised circuits before work, and follow IEC/EN 60947 and local regulations.
| Manufacturer Part Number | 11BGT0910D125 |
|---|---|
| Manufacturer | Lovato |
| Barcode | 8013975095652 |
| Alternative Product SKU | BGT0910D125 |
| Coil Voltage | 125VDC |
