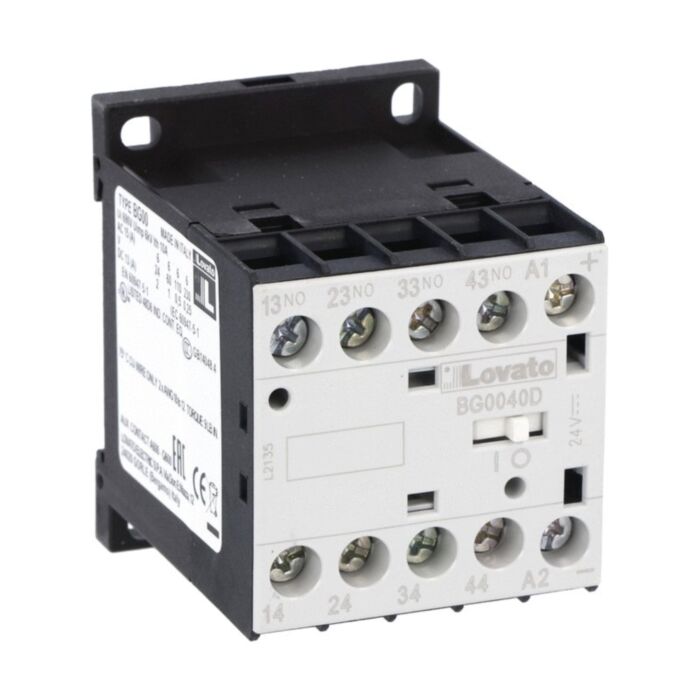

11BG0040D012 - MINICONTACTOR BG00.40D 12V

Why Choose the 11BG0040D012?

Designed for reliable switching in control circuits, the Lovato BG00 control relay SKU 11BG0040D012 features a 12V DC coil and four normally open contacts. With robust screw or 35mm DIN rail mounting, it integrates easily into panels. Rated Ui 690 V and Uimp 6 kV, it delivers dependable performance across demanding industrial environments.

Built for endurance, it offers 10 A Ith and an impressive 20,000,000 mechanical cycles. Operating from -50 to +70 °C and up to 3000 m altitude, this relay suits harsh sites. Conforms to IEC/EN 60947-1 and 60947-5-1, UL 60947-1 and UL 60947-5-1, and CSA C22.2 standards, with secure 0.8 to 1 Nm terminal torque and a manageable 217 g weight.

Key Benefits

• 12V DC coil suits low-voltage control circuits.
• Four NO contacts provide straightforward, isolated switching.
• Rated Ui 690 V and 6 kV impulse withstand.
• 10 A Ith for reliable performance in control circuits.
• Screw or 35mm DIN rail mounting speeds panel installation.
• Operates -50 to +70 °C; 20,000,000 mechanical cycles.
• Complies with IEC/EN, UL, and CSA control standards.
• Compact 217 g build; terminals tighten to 0.8 to 1 Nm.

Technical Specification

• Product type designation: BG00
• Number of poles: 4
• Rated insulation voltage Ui (IEC/EN): 690 V
• Rated impulse withstand voltage Uimp: 6 kV
• Ith (IEC): 10 A
• Terminal tightening torque: 0.8 to 1 Nm
• Weight: 217 g
• Mechanical life: 20000000 cycles
• Operating temperature: -50 to +70 °C
• Storage temperature: -60 to +80 °C
• Max altitude: 3000 m
• Pollution degree: 3

What’s Included

• Lovato 11BG0040D012 control relay
• Manufacturer datasheet and technical documentation
• Standard protective packaging
• Compliance and certification details

Applications

• Control circuit switching with 12V DC coil activation
• Auxiliary switching where four NO contacts are required
• Panel installations using screw or 35mm DIN rail mounting
• Applications requiring Ui 690 V and 6 kV impulse withstand
• Environments from -50 to +70 °C, up to 3000 m altitude

Safety note: Always isolate power before installation or maintenance. Tighten terminals to 0.8 to 1 Nm and follow applicable IEC/EN, UL, and CSA standards for safe operation.
