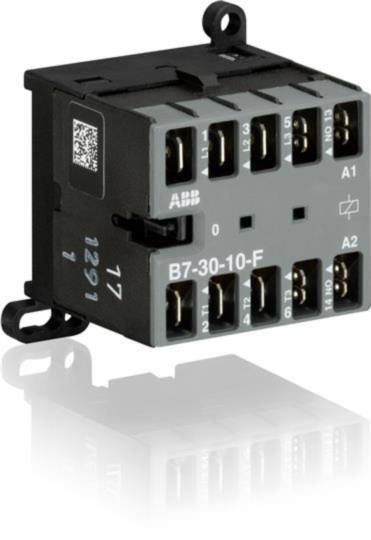

GJL1311003R0101 b7-30-10-f-01 24ac mini ABB Contactor 5.5kw
MPN: GJL1311003R0101
Alt. SKU: B7-30-10-F-01
Special Price
£40.44
£33.70
Regular Price
£62.22
Why Choose the B7-30-10-F-01 [GJL1311003R0101]
The B7-30-10-F mini contactor is a compact 3 pole contactor with 1 auxiliary contact and flat pin connection. They are ideally suited for applications where reliability is a must and space is at a premium. Mini contactors are used in residential buldings, commercial buildings and industrial applications for the control of single or three-phase loads up to 5.5 kW (AC-3) and 20 A (AC-1) or switching of control signals. Further features are the silent coil, a switch position indication and the integrated possibility for rail or wall mounting.
Technical Specification
- Contact Configuration: 3 main NO contacts, 1 auxiliary NO contact, 3 poles.
- Rated Operational Voltage: Main circuit up to 690 V AC / 220 V DC; Auxiliary circuit up to 690 V AC / 250 V DC.
- Rated Operational Current (AC-1): 20 A at 220/240 V (40 °C), 16 A at 220/240 V (55 °C).
- Rated Operational Current (AC-3): 12 A at 230/400 V (55 °C), 3.5 A at 690 V (55 °C).
- Insulation & Impulse Ratings: Rated insulation voltage 690 V; Impulse withstand voltage 6 kV.
- Degree of Protection: IP20 on auxiliary, control and main circuit terminals.
- Terminal Type: Flat-pin connections.
- Mechanical Durability: 10 million operating cycles.
- Mounting: Compatible with TH35-7.5 and TH35-15 DIN rails.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the maximum load capacity of the B7-30-10-F mini contactor?
The B7-30-10-F mini contactor can control single or three-phase loads up to 5.5 kW (AC-3) and 20 A (AC-1).
What is the rated operational voltage for the main circuit?
The rated operational voltage for the main circuit is up to 690 V AC and 220 V DC.
How many auxiliary contacts does the B7-30-10-F have?
The B7-30-10-F has 1 auxiliary normally open contact.
What type of mounting is compatible with this mini contactor?
The B7-30-10-F is compatible with TH35-7.5 and TH35-15 DIN rails for mounting.
What is the degree of protection for the terminals?
The degree of protection for the auxiliary, control, and main circuit terminals is IP20.
What is the mechanical durability of the B7-30-10-F?
The mechanical durability of the B7-30-10-F is rated at 10 million operating cycles.
What standards and approvals does the B7-30-10-F conform to?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | GJL1311003R0101 |
|---|---|
| Manufacturer | ABB |
| Alternative Product SKU | B7-30-10-F-01 |
| KW Rating | 5.5kW |
| Range | B7 |
| Inbuilt Aux | 1 N/O |
| Barcode | 4013614157417 |
| Product Lead Time | Please contact us for a delivery time |
