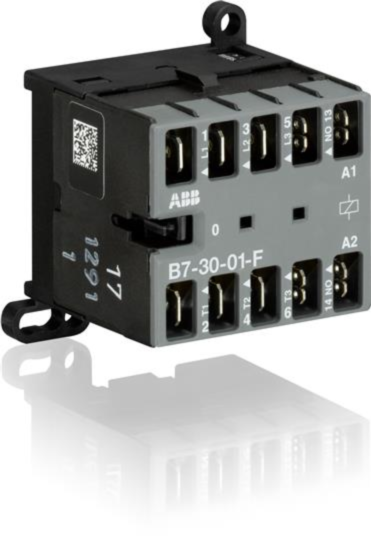

GJL1311003R0011 b7-30-01-f-01 24ac mini ABB Contactor 5.5kw
MPN: GJL1311003R0011
Alt. SKU: B7-30-01-F-01
Special Price
£40.44
£33.70
Regular Price
£62.22
Why Choose the B7-30-01-F-01 [GJL1311003R0011]
The B7-30-01-F mini contactor is a compact 3 pole contactor with 1 auxiliary contact and flat pin connection. They are ideally suited for applications where reliability is a must and space is at a premium. Mini contactors are used in residential buldings, commercial buildings and industrial applications for the control of single or three-phase loads up to 5.5 kW (AC-3) and 20 A (AC-1) or switching of control signals. Further features are the silent coil, a switch position indication and the integrated possibility for rail or wall mounting.
Technical Specification
- Function: 3-pole mini contactor with 1 normally closed auxiliary contact, suitable for controlling single or three-phase loads.
- Rated Operational Voltage: Main circuit up to 690 V AC / 220 V DC; Auxiliary circuit up to 690 V AC / 250 V DC.
- Current Ratings: AC-3: up to 12 A (230/400 V 55 °C); AC-1: up to 20 A (220/240 V 40 °C).
- Contact Configuration: 3 main contacts NO, 1 auxiliary contact NC.
- Insulation and Impulse Ratings: Rated insulation voltage 690 V; impulse withstand voltage 6 kV (main and auxiliary circuits).
- Degree of Protection: Terminals rated IP20 for auxiliary, control, and main circuits.
- Terminal Type: Flat-pin connections.
- Mechanical Durability: 10 million operations.
- Mounting: DIN rail compatible (TH35-15 and TH35-7.5).
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the maximum load capacity of the B7-30-01-F mini contactor?
The B7-30-01-F mini contactor can control single or three-phase loads up to 5.5 kW (AC-3) and 20 A (AC-1).
What is the rated operational voltage for the main and auxiliary circuits?
The rated operational voltage for the main circuit is up to 690 V AC / 220 V DC, and for the auxiliary circuit, it is up to 690 V AC / 250 V DC.
How is the B7-30-01-F mini contactor mounted?
This mini contactor is compatible with DIN rail mounting (TH35-15 and TH35-7.5).
What type of connections does the B7-30-01-F use?
The B7-30-01-F mini contactor features flat-pin connections.
What is the degree of protection for the terminals?
The terminals are rated IP20 for auxiliary, control, and main circuits.
How many operations can the B7-30-01-F mini contactor endure?
The mechanical durability of the B7-30-01-F mini contactor is rated for 10 million operations.
What safety standards does the B7-30-01-F mini contactor comply with?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | GJL1311003R0011 |
|---|---|
| Manufacturer | ABB |
| Alternative Product SKU | B7-30-01-F-01 |
| Packed Quantity | 1 |
| KW Rating | 5.5kW |
| Range | B7 |
| Inbuilt Aux | 1 N/C |
| Barcode | 4013614157424 |
| Product Lead Time | Please contact us for a delivery time |
