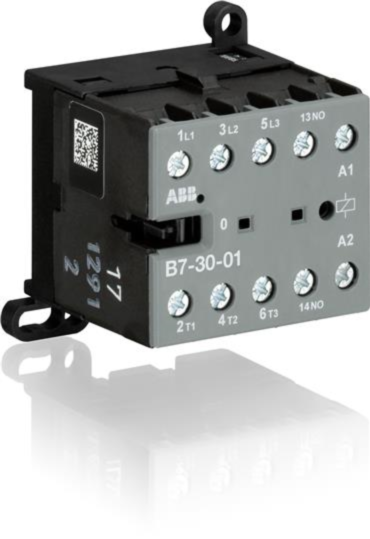

GJL1311001R0012 b7-30-01-02 42ac mini ABB Contactor 5.5kw
MPN: GJL1311001R0012
Alt. SKU: B7-30-01-02
Special Price
£40.44
£33.70
Regular Price
£62.22
Why Choose the B7-30-01-02 [GJL1311001R0012]
The B7-30-01 mini contactor is a compact 3 pole contactor with 1 auxiliary contact and screw terminals. They are ideally suited for applications where reliability is a must and space is at a premium. Mini contactors are used in residential buldings, commercial buildings and industrial applications for the control of single or three-phase loads up to 5.5 kW (AC-3) and 20 A (AC-1) or switching of control signals. Further features are the silent coil, a switch position indication and the integrated possibility for rail or wall mounting.
Technical Specification
- Function: Compact 3 pole mini contactor with 1 auxiliary contact, suitable for controlling single or three-phase loads up to 5.5 kW (AC-3) and 20 A (AC-1).
- Rated Operational Voltage: Main circuit up to 690 V AC, auxiliary circuit up to 690 V AC / 250 V DC.
- Rated Current: AC-1 up to 20 A (220/240 V), AC-3 up to 12 A (230/400 V), DC-13 up to 2.5 A (24 V DC).
- Contact Configuration: 3 NO main contacts, 1 NC auxiliary contact; screw terminal connections.
- Insulation & Impulse Ratings: Rated insulation voltage 690 V; impulse withstand voltage 6 kV (main and auxiliary circuits).
- Degree of Protection: IP20 at all terminals (main, auxiliary and control circuits).
- Terminal Type and Capacity: Screw terminals; flexible and rigid wires from 1 to 4 mm² (with or without ferrules) accepted.
- Mechanical Durability: Rated for 10 million operations.
- Mounting: Compatible with TH35-15 and TH35-7.5 DIN rails or wall mounting.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the maximum load capacity of the B7-30-01 mini contactor?
The B7-30-01 mini contactor can control single or three-phase loads up to 5.5 kW (AC-3) and 20 A (AC-1).
What is the rated operational voltage for the main and auxiliary circuits?
The rated operational voltage is up to 690 V AC for the main circuit and up to 690 V AC / 250 V DC for the auxiliary circuit.
What types of mounting are compatible with the B7-30-01?
The mini contactor can be mounted on TH35-15 and TH35-7.5 DIN rails or directly on a wall.
What is the degree of protection for the terminals?
The degree of protection is IP20 at all terminals including main, auxiliary, and control circuits.
What is the terminal type and capacity for wiring?
The B7-30-01 features screw terminals that accept flexible and rigid wires from 1 to 4 mm², with or without ferrules.
How durable is the B7-30-01 mini contactor?
It is rated for a mechanical durability of 10 million operations.
What standards and approvals does the B7-30-01 conform to?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | GJL1311001R0012 |
|---|---|
| Manufacturer | ABB |
| Alternative Product SKU | B7-30-01-02 |
| Packed Quantity | 1 |
| KW Rating | 5.5kW |
| Range | B7 |
| Inbuilt Aux | 1 N/C |
| Barcode | 4013614156625 |
| Product Lead Time | Please contact us for a delivery time |
