KSC1S - ROLLER CENTRE 26 6MM LONG LEVER SOLDER

Why Choose the KSC1S?

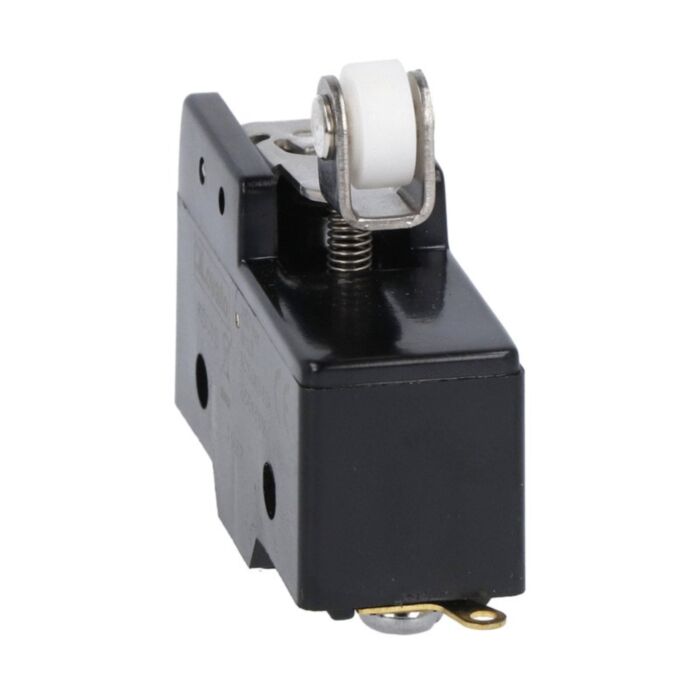

Designed for reliable actuation in control and automation tasks, the Lovato KSC1S plastic micro switch combines a roller centre push lever with the proven K series architecture. Its 26.6mm (1.05in) lever enables smooth, repeatable triggering, while 1NO/NC contacts deliver versatile switching within compact footprints. A robust polymer thermoplastic housing and convenient solder terminals streamline assembly, making integration straightforward in panels, appliances and machinery where precise, consistent performance is required.

Engineered for durability, the KSC1S offers up to 20,000,000 mechanical cycles and an Ith (IEC) of 15 A for demanding control circuits. Operating from -25 to +70 °C, it conforms to IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 61058-1, UL508 and CSA C22.2 n° 14. With KSC1 designation and Pollution Degree 3 classification, this micro switch suits industrial environments requiring repeatable, accurate actuation over a long service life.

Key Benefits

• 26.6mm roller centre push lever for smooth, repeatable actuation
• 1NO/NC contacts provide flexible circuit configuration
• Solder terminals enable quick, secure wiring
• 15 A Ith (IEC) supports robust control loads
• Up to 20,000,000 mechanical cycles for long service life
• Operates from -25 to +70 °C across varied environments
• Compliant with IEC/EN 60947-5-1, UL508 and CSA standards

Technical Specification

• Product type designation: KSC1
• Ith (IEC): 15 A
• Weight: 36 g
• Mechanical life: 20000000 cycles
• Operating temperature: -25 to +70 °C
• Storage temperature: -40 to +70 °C
• Pollution degree: 3

What’s Included

• Lovato KSC1S plastic micro switch
• Protective packaging for transit

Applications

• Position and limit sensing in machinery and automation
• Cam or follower actuation with roller lever mechanisms
• Control circuits requiring 1NO/NC micro switch feedback
• Appliance and equipment actuation where solder terminations are preferred

Safety note: Install and operate only by competent personnel. Disconnect power before wiring, use proper soldering practices, and do not exceed the rated thermal current of 15 A. Follow all applicable standards.
