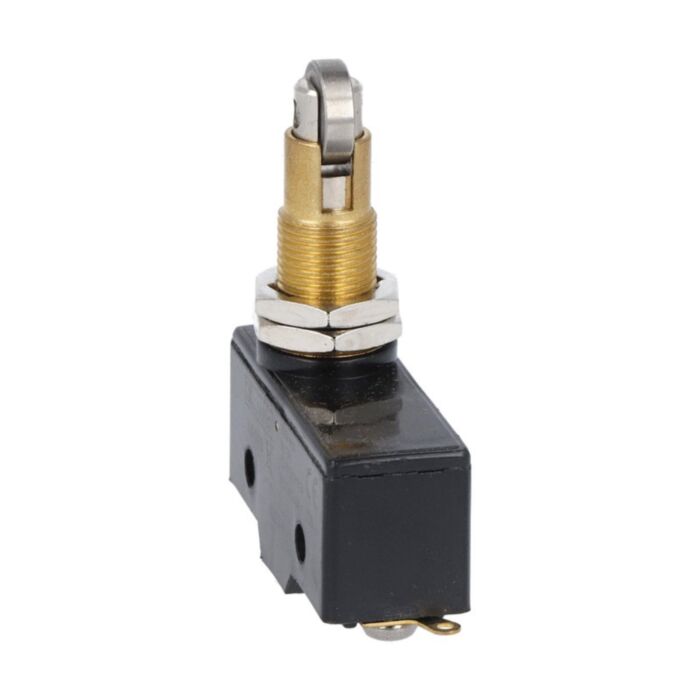

KSB1S - M12 FIXING HEAD 1NO+1NC SOLDER TERMINAL
MPN: KSB1S
Special Price
£15.46
£12.88
Regular Price
£25.76
Why Choose the KSB1S?
Engineered for dependable actuation in compact assemblies, the Lovato KSB1S plastic micro switch features a top roller push plunger and an M12 fixing head for straightforward mounting. Its versatile 1NO/NC contacts and solder terminals support clean, secure connections, while the robust polymer thermoplastic housing delivers long service life. With an Ith (IEC) of 15 A and a mechanical life rated to 20,000,000 cycles, it suits demanding duty.
Designed within the Lovato K series (designation KSB1), this plastic micro switch operates reliably from -25 to +70 °C and stores from -40 to +70 °C. It meets IEC/EN 60947-1, IEC/EN 60947-5-1 and IEC/EN 61058-1, and carries UL508 and CSA C22.2 n° 14 compliance. Rated Pollution Degree 3, and weighing 57 g, it supports sturdy, repeatable switching in industrial builds.
Key Benefits
- Top roller push plunger for smooth, precise actuation
- M12 fixing head simplifies secure mounting in tight spaces
- 1NO/NC contacts provide flexible control and signalling
- Solder terminals enable reliable, permanent wiring connections
- Polymer thermoplastic housing offers robust, lightweight durability
- 20,000,000 mechanical cycles for exceptional service life
- Wide operating range from -25 to +70 °C
- Compliant with IEC/EN, UL and CSA standards
Technical Specification
- Product type designation: KSB1
- Ith (IEC): 15 A
- Weight: 57 g
- Mechanical life: 20000000 cycles
- Operating temperature: -25 to +70 °C
- Storage temperature: -40 to +70 °C
- Pollution degree: 3
What’s Included
- Lovato KSB1S plastic micro switch, top roller push plunger
- M12 fixing head integrated on switch body
- Manufacturer datasheet and basic installation guidelines
Applications
- Position detection and end-of-travel in machinery
- Conveyor, cam and actuator limit switching
- Door, guard and panel interlock sensing
- Control panels and OEM equipment builds
- General industrial automation switching tasks
Frequently Asked Questions
What contact configuration does the Lovato KSB1S provide?
It offers 1NO/NC contacts for versatile signalling and control.
What type of terminals are fitted?
Solder terminals are provided for secure, permanent wiring.
What is the operating temperature range?
The specified operating range is -25 to +70 °C.
What is the Ith current rating?
The Ith (IEC) thermal current is rated at 15 A.
Which standards does it conform to?
It conforms to IEC/EN 60947-1, IEC/EN 60947-5-1 and IEC/EN 61058-1, and is certified to UL508 and CSA C22.2 n° 14.
Safety note: Install and commission only by competent personnel. Observe applicable IEC/EN standards, Pollution Degree 3 and temperature limits, use proper soldering practice, and ensure the M12 mounting is secure before energising.
| Manufacturer Part Number | KSB1S |
|---|---|
| Manufacturer | Lovato |
| Barcode | 8013975148129 |
