KSB1F - M12 FIXING HEAD 1NO+1NC FASTON TERMINAL
MPN: KSB1F
Special Price
£16.48
£13.73
Regular Price
£27.47
Why Choose the KSB1F?

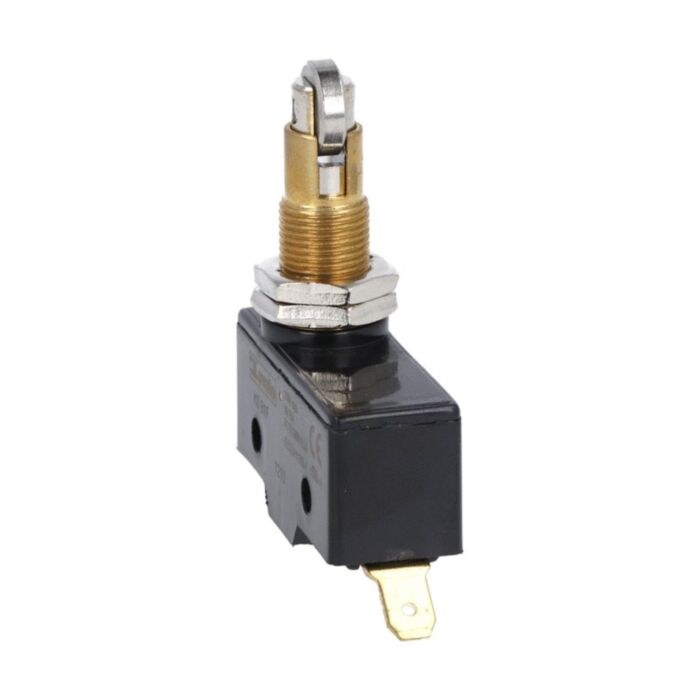

The Lovato KSB1F Plastic Micro Switch from the K series features a top roller push plunger for smooth cam or slide actuation. An M12 fixing head simplifies mounting, while 1NO/NC contacts and Faston terminals integrate easily into control circuits. Its polymer thermoplastic housing provides a tough, lightweight build suited to repetitive switching tasks across industrial, OEM and panel applications.
Engineered for longevity, the KSB1F delivers 20,000,000 mechanical cycles and an Ith (IEC) of 15 A. It operates from -25 to +70 °C and is specified for pollution degree 3 environments. Compliance with IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 61058-1, UL508 and CSA C22.2 n° 14 offers assured performance for UK machinery builders, automation panels and appliance-related control systems.
Key Benefits
- Top roller push plunger enables smooth, repeatable actuation on cams or slides.
- 15 A Ith (IEC) supports robust control circuit duty.
- 20,000,000 mechanical cycles for long service life and reliability.
- Polymer thermoplastic housing offers lightweight strength and durability.
- Faston terminals for quick, standard spade connections.
- Operates from -25 to +70 °C for broad environmental suitability.
- Conforms to IEC/EN, UL and CSA standards for compliance confidence.
- M12 fixing head simplifies straightforward mounting.
Technical Specification
- Product type designation: KSB1
- Ith (IEC): 15 A
- Weight: 58 g
- Mechanical life: 20000000 cycles
- Operating temperature: -25 to +70 °C
- Storage temperature: -40 to +70 °C
- Pollution degree: 3
What’s Included
- Lovato KSB1F plastic micro switch
- Integrated top roller push plunger actuator
- M12 fixing head
- Faston terminals
Applications
- Limit and position sensing on machinery and equipment
- Cam or slide actuation using the roller plunger
- General industrial control and signalling circuits
- Appliance switch applications covered by IEC/EN 61058-1
- OEM panels and automation assemblies
Frequently Asked Questions
What is the actuator type on the Lovato KSB1F?
It uses a top roller push plunger for cam or slide actuation.
What contact configuration does this micro switch provide?
It has 1NO/NC contacts for versatile signalling and interlocking.
What current rating is specified?
The Ith (IEC) thermal current is 15 A.
What is the operating temperature range?
The specified operating range is -25 to +70 °C.
Which standards does the KSB1F conform to?
It conforms to IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 61058-1, UL508 and CSA C22.2 n° 14.
Safety note: Install and wire only by competent persons; de-energise circuits before work. Observe the Ith rating, temperature limits and relevant IEC/EN, UL and CSA standards during selection, installation and operation.
| Manufacturer Part Number | KSB1F |
|---|---|
| Manufacturer | Lovato |
| Barcode | 8013975148389 |
