KSA3F - TOP PUSH LOW ROD PLUNGER FASTON TERM.

Why Choose the KSA3F?

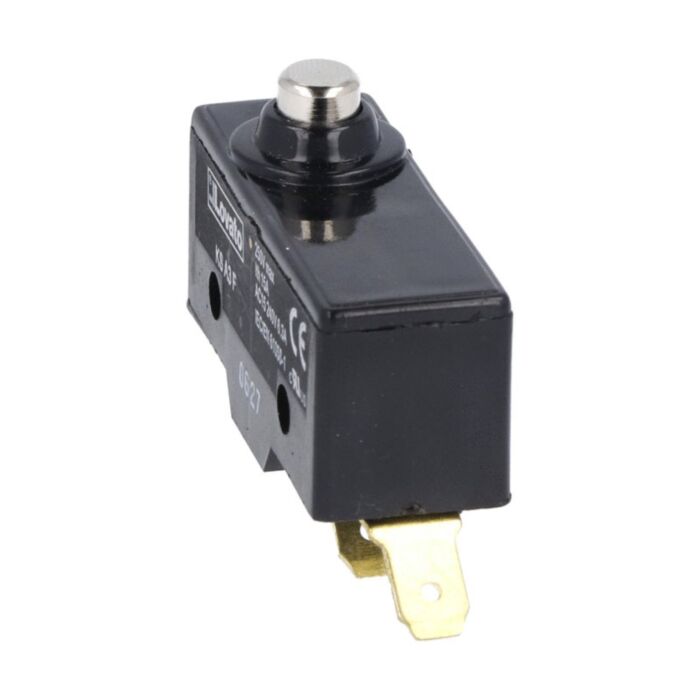

Designed for reliable actuation in compact assemblies, the Lovato KSA3F plastic micro switch features a top push rod with a metal, low rod plunger for precise triggering. Its 1NO/NC contacts and Faston terminals simplify integration into control circuits and panel builds. Rated Ith 15 A and built in polymer thermoplastic housing, this K series micro switch delivers robust performance in demanding environments.

Engineered to international standards including IEC/EN 60947-1, IEC/EN 60947-5-1 and IEC/EN 61058-1, the KSA3 designation ensures proven reliability. With a mechanical life of 20,000,000 cycles and operating temperature from -25 to +70 °C, it suits varied environments (pollution degree 3). Weighing just 35 g, and backed by UL508 and CSA C22.2 n° 14 compliance, it offers dependable switching for long-term service.

Key Benefits

• Top push rod with metal, low rod plunger for precise actuation.
• 1NO/NC contacts provide versatile switching in control circuits.
• Faston terminals enable quick, secure connections.
• 15 A Ith rating for robust current handling capability.
• Polymer thermoplastic housing for reliable performance.
• Long mechanical life of 20,000,000 cycles reduces maintenance.
• Wide operating range from -25 to +70 °C ensures reliability.

Technical Specification

• Product type designation: KSA3
• Ith (IEC): 15 A
• Weight: 35 g
• Mechanical life: 20000000 cycles
• Operating temperature: -25 to +70 °C
• Storage temperature: -40 to +70 °C
• Pollution degree: 3

What’s Included

• Lovato KSA3F plastic micro switch, K series
• Integrated Faston terminals ready for connection
• Basic installation and safety information

Applications

• Industrial control and automation circuits
• Actuation and position detection in machinery
• Panel building and OEM equipment integration
• Replacement for micro switches in maintenance and repairs

Safety note: Install and operate only within the specified ratings and temperature ranges. Ensure wiring is completed by qualified personnel and power is isolated before connection or maintenance.
