KSA2V - LEVER MICRO SWITCH FASTON TERMINAL

Why Choose the KSA2V?

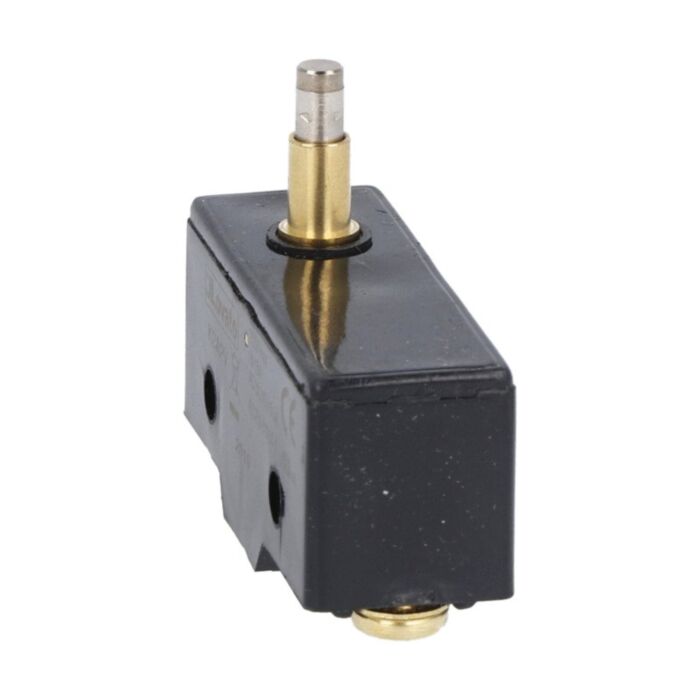

Lovato KSA2V plastic micro switch from the K series delivers reliable actuation with a top push rod and metal high plunger. This compact unit features 1NO/NC contacts and screw terminals for straightforward wiring in control circuits. Built with a polymer thermoplastic housing, the KSA2V is designed for consistent performance and easy integration into industrial panels, machinery interfaces and general automation tasks.

Rated Ith (IEC) 15 A and tested to 20,000,000 mechanical cycles, it supports long service life with dependable switching. Operating from -25 to +70 °C with pollution degree 3, it suits a wide range of environments. Conformity to IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 61058-1, UL508 and CSA C22.2 n° 14 helps streamline compliance and specification for UK industrial applications.

Key Benefits

• Robust polymer thermoplastic housing for durable, reliable performance.
• Fast, precise actuation via top push rod with metal high plunger.
• Versatile 1NO/NC contacts suit signalling and control requirements.
• Screw terminals enable secure wiring and straightforward maintenance.
• High endurance: 20,000,000 mechanical cycles for long service life.
• 15 A Ith (IEC) rating supports diverse circuit loads.
• Wide operating temperature range from -25 to +70 °C.
• Conforms to IEC/EN, UL and CSA standards for compliance.

Technical Specification

• Product type designation: KSA2
• Ith (IEC): 15 A
• Weight: 33 g
• Mechanical life: 20000000 cycles
• Operating temperature: -25 to +70 °C
• Storage temperature: -40 to +70 °C
• Pollution degree: 3

What’s Included

• Lovato KSA2V plastic micro switch unit
• Manufacturer datasheet (downloadable)
• Protective packaging

Applications

• Industrial control panels and automation equipment
• Position or limit detection with top push rod actuation
• Machinery switching tasks requiring 1NO/NC contacts
• General signalling and interlocking within control circuits

Safety note: Install and service by qualified personnel. Isolate power before wiring, observe the stated ratings and temperature limits, and follow applicable IEC/EN and national regulations.
