KSA1V - PIN MICRO SWITCH SCREW CONTACTCS

Why Choose the KSA1V?

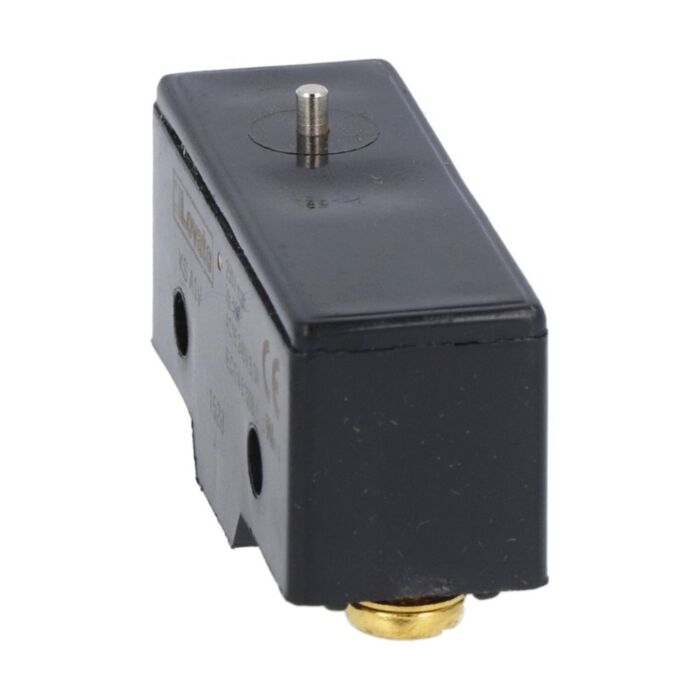

Lovato’s KSA1V Plastic Micro Switch delivers dependable actuation with a top push rod metal plunger and versatile 1NO/NC contacts. Built with a polymer thermoplastic housing and screw terminals, this K series switch integrates easily into control circuits. With a product type designation of KSA1, the KSA1V balances compact 31 g construction with robust performance for precise signalling and reliable changeover in industrial and appliance applications.

Engineered for longevity, it offers 20,000,000 mechanical cycles and operates from -25 to +70 °C, with storage down to -40 °C. Rated Ith (IEC) at 15 A and pollution degree 3, it conforms to IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 61058-1, UL508 and CSA C22.2 n° 14, supporting compliance in demanding control and appliance applications.

Key Benefits

• Top push rod with metal plunger for precise, repeatable actuation.
• 1NO/NC contacts provide flexible changeover switching in control circuits.
• Robust polymer thermoplastic housing enhances durability and stability.
• Long mechanical life of 20,000,000 cycles reduces maintenance.
• Wide operating temperature range from -25 to +70 °C.
• Screw terminals ensure secure, straightforward wiring and serviceability.
• Conforms to IEC/EN, UL, and CSA standards for compliance assurance.
• 15 A Ith (IEC) rating supports demanding thermal current requirements.

Technical Specification

• Product type designation: KSA1
• Ith (IEC): 15 A
• Weight: 31 g
• Mechanical life: 20000000 cycles
• Operating temperature: -25 to +70 °C
• Storage temperature: -40 to +70 °C
• Pollution degree: 3

What’s Included

• Lovato KSA1V plastic micro switch unit
• Screw-terminal connection points integrated into the unit
• Manufacturer datasheet (online access)

Applications

• Control circuits requiring 1NO/NC changeover switching.
• Equipment designed to IEC/EN 60947-5-1 control device standards.
• Appliance switching applications aligned with IEC/EN 61058-1.
• Panels needing screw-terminal micro switches for straightforward wiring.
• Installations assessed for pollution degree 3 environments.

Safety note: Install and operate within the specified electrical and environmental ratings, following the listed standards. Use by qualified personnel only.
