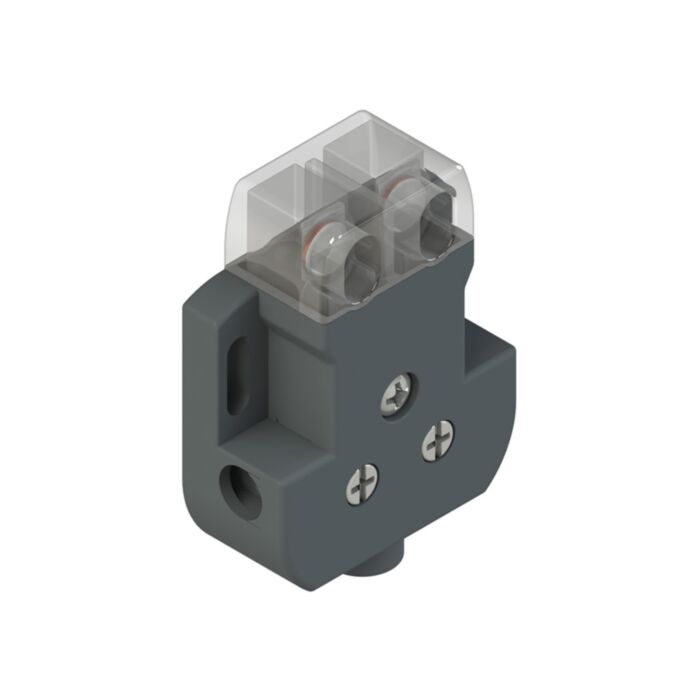

DS CH1VA0 Pizzato Door contact with transparent head
MPN: DS CH1VA0
Alt. SKU: DSCH1VA0
£11.14
£9.28
DS CH1VA0 Pizzato Door contact with transparent head is available to buy in increments of 10
Why Choose the Pizzato DS CH1VA0 Safety Door Contact?
The Pizzato DS CH1VA0 is a compact and reliable safety door contact switch designed for monitoring guard positions and access points in industrial machinery. Part of the trusted Pizzato DS series, this device ensures dependable operation in safety circuits where accurate position detection is essential.
Featuring a distinctive transparent actuator head, the DS CH1VA0 allows quick visual inspection during maintenance and operation. Its positive opening contacts guarantee mechanically enforced separation, ensuring safe disconnection even under fault conditions.
With a compact technopolymer housing and robust internal mechanism, this switch is ideal for industrial environments requiring high durability, reliability and compliance with modern machine safety standards.
Key Advantages
- Compact safety door contact switch for industrial machinery.
- Transparent head for quick visual status inspection.
- Positive opening contacts for reliable safety operation.
- High durability with long mechanical service life.
- Simple installation with screw terminal connections.
- Suitable for safety circuits and machine guarding applications.
Key Features
- Pizzato DS series safety switch.
- Normally closed (NC) contact configuration.
- Positive opening mechanism for fail-safe disconnection.
- Transparent head design for visual monitoring.
- Technopolymer housing.
- IP20 protection rating.
- Screw terminal connection.
- Mechanical endurance up to 20 million cycles.
Technical Specifications
- Manufacturer: Pizzato Elettrica
- Series: DS Series
- Model: DS CH1VA0
- Product type: Safety door contact switch
- Contact configuration: 1 NC (SPST)
- Positive opening: Yes
- Protection rating: IP20 (EN 60529)
- Housing material: Technopolymer
- Connection type: Screw terminals
- Mechanical durability: up to 20,000,000 cycles
- Operating temperature: -30 to +80 °C
- Dimensions: approx. 60 × 44 × 19 mm
Reliable Safety Monitoring for Industrial Guards
The DS CH1VA0 is designed to monitor the position of doors, guards and access panels in industrial equipment. When a guard is opened, the switch interrupts the safety circuit, preventing hazardous machine operation and ensuring operator protection.
Its positive opening design ensures direct mechanical separation of contacts, making it suitable for safety-rated applications where dependable disconnection is critical.
Typical Applications
- Machine guarding and safety door monitoring.
- Access control in industrial automation systems.
- Conveyor and material handling equipment.
- Packaging and processing machinery.
- OEM machine building and safety integration.
- Lift and door mechanism monitoring systems.
Frequently Asked Questions
What is the Pizzato DS CH1VA0 used for?
This switch is used to monitor doors and guards on industrial machinery, ensuring safe operation by interrupting the safety circuit when access points are opened.
What is the benefit of the transparent head?
The transparent head allows quick visual inspection of the actuator and internal mechanism, improving maintenance and diagnostics.
What type of contacts does it use?
The DS CH1VA0 uses a normally closed (NC) contact with a positive opening mechanism for safety applications.
What is the protection rating?
This model has an IP20 protection rating, suitable for protected installations such as inside control panels.
Where is this switch typically installed?
It is installed on machine guards, doors and protective covers in industrial environments.
Trusted by Machine Builders Worldwide
Pizzato safety door contacts are widely trusted by engineers and OEM manufacturers for delivering reliable, standards-compliant protection in industrial automation systems.
| Alternative Product SKU | DSCH1VA0 |
|---|---|
| Manufacturer Part Number | DS CH1VA0 |
| Manufacturer | Pizzato |
| Barcode | 8018851181313 |
| Range | DS |
| Packed Quantity | 10 |
| HS Code | 85369095 |
