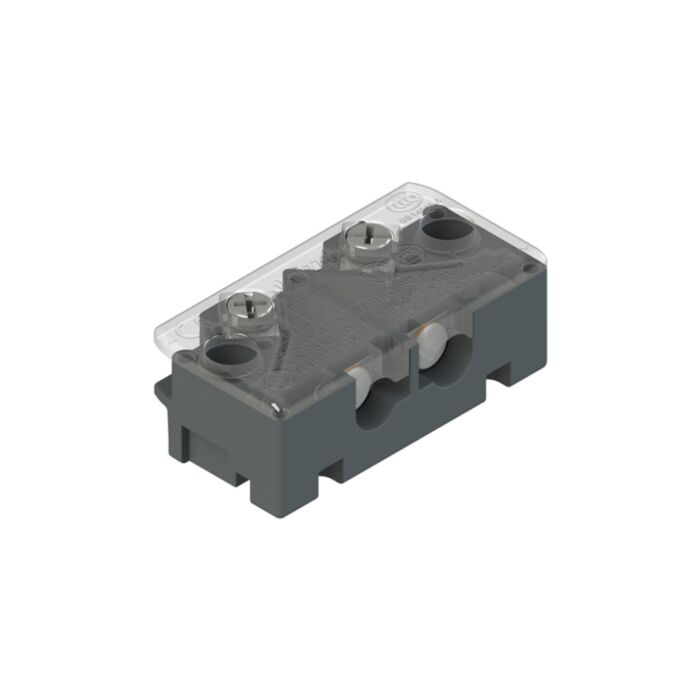

DS AE1VA Pizzato Door switches with internal contacts
MPN: DS AE1VA
Alt. SKU: DSAE1VA
£7.88
£6.57
DS AE1VA Pizzato Door switches with internal contacts is available to buy in increments of 10
Why Choose the Pizzato DS AE1VA Safety Door Switch?
The Pizzato DS AE1VA is a compact and reliable safety door switch with internal contacts, designed for monitoring access points and protective guards in industrial machinery. As part of the proven Pizzato DS series, it provides dependable position detection and safe circuit interruption in automated systems.
Engineered with positive opening contacts, the DS AE1VA ensures a mechanically enforced separation of contacts, making it suitable for safety circuits where fail-safe operation is essential. Its compact design and durable construction make it ideal for installations where space is limited but reliability cannot be compromised.
With simple screw terminal wiring and a technopolymer housing, this switch integrates easily into machine safety systems, supporting compliance with modern industrial safety standards.
Key Advantages
- Compact safety door switch for industrial machinery.
- Positive opening contacts for enhanced safety reliability.
- High durability with long mechanical service life.
- Simple installation using screw terminal connections.
- Ideal for guard door monitoring and access control.
- Reliable performance in demanding industrial environments.
Key Features
- Pizzato DS series safety switch.
- 1 NC contact configuration for safety circuits.
- Positive opening mechanism for fail-safe disconnection.
- Technopolymer housing construction.
- IP20 protection rating.
- Screw terminal connection.
- Compact dimensions for easy mounting.
- High mechanical endurance up to 10 million cycles.
Technical Specifications
- Manufacturer: Pizzato Elettrica
- Series: DS Series
- Model: DS AE1VA
- Product type: Safety door switch
- Contact configuration: 1 NC
- Positive opening: Yes
- Protection rating: IP20
- Housing material: Technopolymer
- Connection type: Screw terminals
- Mechanical durability: approx. 10,000,000 cycles
- Operating temperature: -30 to +80 °C
- Dimensions: approx. 50 × 25 × 23.5 mm
Reliable Safety Monitoring for Guarded Access Points
Safety door switches such as the DS AE1VA are essential components in machine safety systems. They detect whether protective guards or doors are closed, ensuring that machinery cannot operate when access points are open, thereby reducing the risk of injury.
The positive opening design provides a direct mechanical link between the actuator and contacts, ensuring reliable disconnection even in the event of contact welding. This makes the DS AE1VA suitable for integration into safety-rated control systems.
Typical Applications
- Machine guarding and safety door monitoring.
- Access control in industrial equipment.
- Packaging and processing machinery.
- Conveyor and material handling systems.
- OEM machine building and automation systems.
- Safety circuits requiring positive opening contacts.
Frequently Asked Questions
What is the Pizzato DS AE1VA used for?
This safety switch is used to monitor doors and guards on industrial machines, ensuring safe operation by interrupting circuits when access points are opened.
What type of contacts does it have?
The DS AE1VA features a normally closed (NC) contact with a positive opening mechanism for safety applications.
What is the protection rating?
This model has an IP20 protection rating, suitable for installation inside control panels or protected environments.
What is the mechanical lifespan?
The switch is designed for high durability, with a mechanical life of up to 10 million operating cycles.
Where is this switch typically installed?
It is typically installed on machine guards, doors or protective covers within industrial equipment.
Trusted by Machine Builders Worldwide
Pizzato safety switches are trusted by engineers and OEM manufacturers for delivering reliable, standards-compliant safety monitoring in industrial automation systems.
| Alternative Product SKU | DSAE1VA |
|---|---|
| Manufacturer Part Number | DS AE1VA |
| Manufacturer | Pizzato |
| Barcode | 8018851129551 |
| Range | DS |
| Packed Quantity | 10 |
| HS Code | 85369095 |
