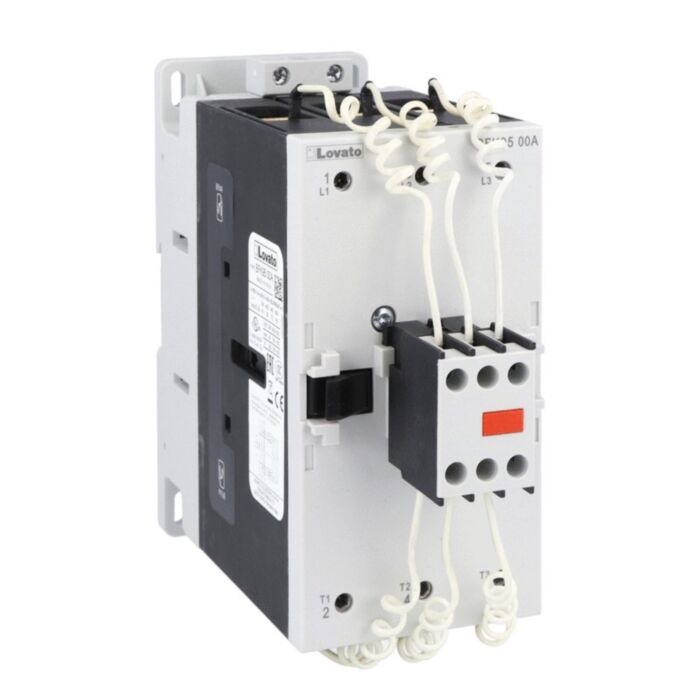

BFK9500A024 - CONTACTOR FOR PFC 60KVAR 24VAC 50/60HZ

Why Choose the BFK9500A024?

Engineered for reliable capacitor switching, the Lovato BFK9500A024 Contactor for power factor correction with AC control circuit delivers dependable performance in low-voltage installations. Featuring a 24VAC 50/60Hz coil and integrated limiting resistors, this three-pole BFK95 unit provides up to 60kvar at 400V. Compact and installer-friendly, it mounts via screw fixings or 35mm DIN rail, supporting efficient power factor correction while helping to reduce inrush stress on capacitors.

Built for longevity and safety, it offers Ui 690 V, Uimp 8 kV and Ith 140 A, with a mechanical life of 15,000,000 cycles. Operating from -50 to 70 °C and up to 3000 m (pollution degree 3), it conforms to IEC/EN/BS 60947-1 and 60947-4-1, plus UL and CSA equivalents. Terminals accept 6 to 7 Nm tightening torque, and the 2095 g build suits panel builders and OEMs.

Key Benefits

• 60kvar switching capacity at 400V for efficient power factor correction.
• 24VAC 50/60Hz coil suits common AC control circuits.
• Built-in limiting resistors help manage capacitor inrush currents.
• Three-pole BFK95 design for reliable LV capacitor bank control.
• Screw or 35mm DIN rail mounting for fast, flexible installation.
• Wide -50 to 70 °C operating range for harsh environments.
• High endurance with 15,000,000 mechanical cycles for long service life.

Technical Specification

• Product type designation: BFK95
• Number of poles: 3
• Rated insulation voltage Ui (IEC/EN): 690 V
• Rated impulse withstand voltage Uimp: 8 kV
• Ith (IEC): 140 A
• Terminal tightening torque: 6 to 7 Nm
• Weight: 2095 g
• Mechanical life: 15000000 cycles
• Operating temperature: -50 to 70 °C
• Storage temperature: -60 to 80 °C
• Max altitude: 3000 m
• Pollution degree: 3

What’s Included

• Lovato BFK95 contactor unit (SKU BFK9500A024) with limiting resistors
• Pre-fitted 24 VAC 50/60Hz coil
• Screw and 35mm DIN rail mounting terminals
• Manufacturer documentation/datasheet
• Protective packaging

Applications

• Low-voltage capacitor banks for power factor correction at 400 V
• Industrial and commercial power distribution panels requiring PFC
• OEM equipment with AC control circuits for capacitor switching
• Switchgear assemblies needing three-pole PFC contactors
• Retrofit upgrades to existing power factor correction systems

Safety note: Install and commission only by qualified personnel. Isolate power before work, tighten terminals to 6–7 Nm, and operate within the specified environmental limits and standards.
