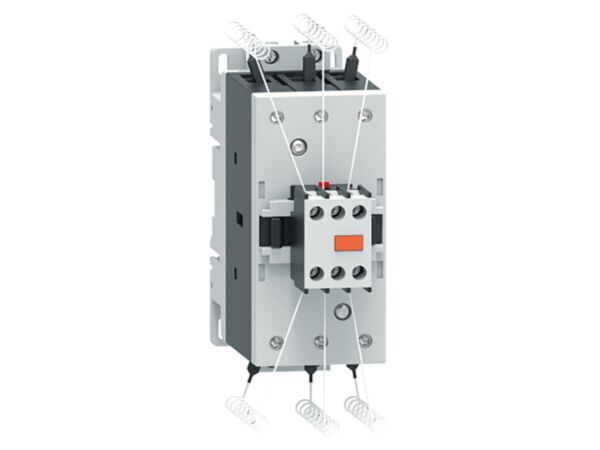

BFK6500A024 - PFC CONTACTOR 45KVAR 24VAC 50/60HZ

Why Choose the BFK6500A024?

Designed for reliable capacitor switching, the Lovato BFK6500A024 is a contactor for power factor correction with an AC control circuit. Delivering up to 45 kvar at 400 V, this 3‑pole BFK65 unit includes limiting resistors to reduce inrush. A 24 VAC 50/60 Hz coil ensures straightforward integration, while screw or 35 mm DIN rail mounting simplifies installation in PFC panels and OEM assemblies.

Built for demanding environments, the contactor offers Ui 690 V and Uimp 8 kV insulation ratings, with Ith 100 A for robust performance. A mechanical life of 15,000,000 cycles and an operating range from -50 to 70 °C at altitudes up to 3000 m support long service life. Compliant with IEC/EN/BS, UL and CSA standards and Pollution Degree 3, terminals accept 4–5 Nm torque for secure, dependable connections.

Key Benefits

• Integrated limiting resistors minimise inrush during capacitor switching.
• Delivers 45 kvar at 400 V for effective power factor correction.
• 24 VAC 50/60 Hz coil suits common AC control circuits.
• Flexible screw or 35 mm DIN rail mounting options.
• High insulation ratings: Ui 690 V and Uimp 8 kV.
• Long mechanical life rated to 15,000,000 operations.
• Wide operating temperature range from -50 to 70 °C.
• Standards compliance with IEC/EN/BS, UL, and CSA.

Technical Specification

• Product type designation: BFK65
• Number of poles: 3
• Rated insulation voltage Ui (IEC/EN): 690 V
• Rated impulse withstand voltage Uimp: 8 kV
• Ith (IEC): 100 A
• Terminal tightening torque: 4 to 5 Nm
• Weight: 1090 g
• Mechanical life: 15000000 cycles
• Operating temperature: -50 to 70 °C
• Storage temperature: -60 to 80 °C
• Max altitude: 3000 m
• Pollution degree: 3

What’s Included

• Lovato BFK65 power factor correction contactor (SKU BFK6500A024)
• Integrated limiting resistors for capacitor switching
• Pre-fitted 24 VAC 50/60 Hz coil
• Downloadable product datasheet

Applications

• Low-voltage capacitor banks for power factor correction at 400 V
• Automatic power factor correction panels in commercial facilities
• Industrial distribution boards and OEM-built PFC systems
• Retrofit upgrades to existing capacitor switching assemblies
• AC control circuits requiring a 24 VAC coil contactor

Safety note: Install and commission only by qualified personnel. Isolate power before work, observe terminal torque (4–5 Nm), and follow applicable standards and site procedures.
