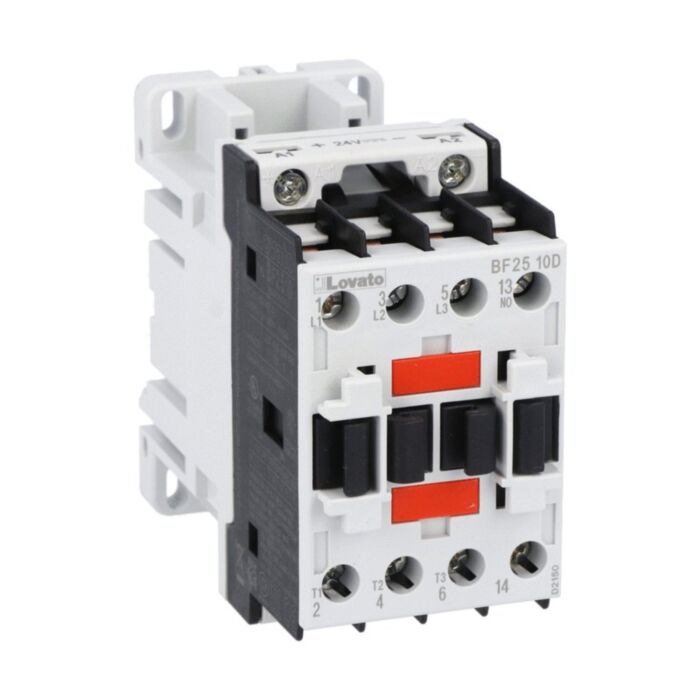

BF2510D110 - 3P CONTACTOR 1NO 25A 110VDC
MPN: BF2510D110
Special Price
£117.88
£98.23
Regular Price
£196.45
Why Choose the BF2510D110?
Lovato BF2510D110 is a three-pole contactor engineered for reliable motor and power switching. With a 110V DC coil and AC-3 performance of 25A / 12.5Kw at 400V, it delivers dependable control within IEC limits. A built-in 1NO auxiliary contact simplifies signalling, while the unit suits modern panel assemblies. SKU BF2510D110 supports screw or 35mm DIN rail mounting to speed installation and maintenance.
Built for demanding environments, this BF25 series contactor offers Ui 690 V and Uimp 6 kV insulation strength, plus a mechanical life of 20,000,000 cycles. It operates from -50 to 70 °C, up to 3000 m altitude, Pollution Degree 3. Conformity includes IEC/EN/BS 60947-1 and 60947-4-1, with UL and CSA equivalents, and it tightens to 1.5 to 1.8 Nm at the terminals.
Key Benefits
- 25A AC-3 at 400V for dependable motor switching.
- 110V DC coil ensures fast, consistent operation.
- Built-in 1NO auxiliary simplifies status signalling.
- Screw or 35mm DIN rail mounting speeds installation.
- High insulation: Ui 690 V, Uimp 6 kV.
- Wide operating temperature -50 to 70 °C performance.
- Long mechanical life rated 20,000,000 cycles.
- Conforms to IEC/EN/BS, UL and CSA 60947 standards.
Technical Specification
- Product type designation: BF25
- Number of poles: 3
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 32 A
- Terminal tightening torque: 1.5 to 1.8 Nm
- Weight: 492 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to 70 °C
- Storage temperature: -60 to 80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BF2510D110 three-pole contactor
- Integrated 1NO auxiliary contact (built-in)
- Manufacturer packaging and identification labels
- Basic safety and conformity information
Applications
- AC-3 motor switching at 400 V up to 25A
- General-purpose power switching within AC1/AC3 ratings
- Industrial control panels with screw or 35mm DIN rail mounting
- Installations to Pollution Degree 3 at altitudes up to 3000 m
Frequently Asked Questions
Is the coil AC or DC, and what voltage does it require?
It has a DC coil rated at 110 VDC.
What is the AC-3 switching capacity at 400 V?
It is rated 25A / 12.5Kw at 400V for AC-3 duty.
Does this contactor include auxiliary contacts?
Yes, it includes a built-in 1NO auxiliary contact.
How can the BF2510D110 be mounted?
It mounts by screw fixing or on a 35mm DIN rail.
Which standards does it conform to?
IEC/EN/BS 60947-1 and 60947-4-1, UL 60947-1 and 60947-4-1, and CSA C22.2 n° 60947-1 and 60947-4-1.
Safety note: Install and commission only by qualified personnel. Isolate power before work, tighten terminals to 1.5 to 1.8 Nm, and operate strictly within stated ratings, environmental limits and applicable standards.
| Manufacturer Part Number | BF2510D110 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975166505 |
| Coil Voltage | 110VDC |
