BF2510D060 - 3P CONTACTOR 1NO 25A 60VDC

Why Choose the BF2510D060?

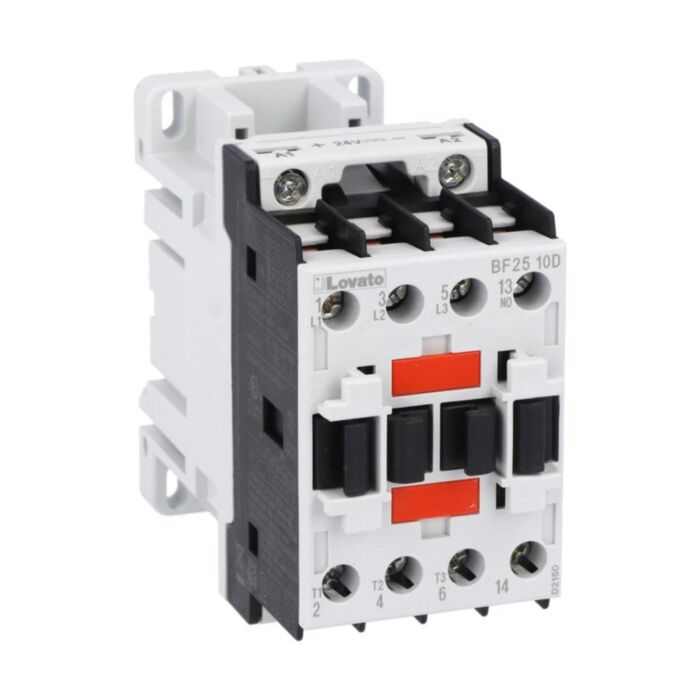

Lovato BF2510D060 three‑pole contactor delivers dependable switching for motor control and general loads. Part of the BF25 series, it features a 60 V DC coil, AC‑3 rating of 25 A (12.5 kW at 400 V) and a built‑in 1NO auxiliary contact. Flexible screw or 35 mm DIN rail mounting simplifies panel integration, while compliance with IEC/EN/BS 60947 standards supports safe, consistent performance in industrial control assemblies.

Engineered for longevity, the BF25 platform offers 20,000,000 mechanical cycles and robust insulation to 690 V with 6 kV impulse withstand. Rated 32 A AC‑1, it performs reliably from −50 to +70 °C and up to 3000 m altitude in pollution degree 3 environments. Clear terminal access and specified 1.5–1.8 Nm tightening torque aid secure wiring during build, making it a solid choice for OEMs and maintenance teams.

Key Benefits

• Three‑pole contactor with AC‑3 25 A, 12.5 kW at 400 V
• 60 V DC coil for straightforward control circuit integration
• Built‑in 1NO auxiliary contact for status or interlocking
• Mounts via screws or 35 mm DIN rail for fast installation
• Wide operating temperature −50 to +70 °C for harsh environments
• High insulation 690 V and 6 kV impulse withstand
• Long mechanical life rated 20,000,000 cycles

Technical Specification

• Product type designation: BF25
• Number of poles: 3
• Rated insulation voltage Ui (IEC/EN): 690 V
• Rated impulse withstand voltage Uimp: 6 kV
• Ith (IEC): 32 A
• Terminal tightening torque: 1.5 to 1.8 Nm
• Weight: 496 g
• Mechanical life: 20000000 cycles
• Operating temperature: -50 to 70 °C
• Storage temperature: -60 to 80 °C
• Max altitude: 3000 m
• Pollution degree: 3

What’s Included

• Lovato BF2510D060 three‑pole contactor (BF25 series)
• Integrated 60 V DC coil and 1NO auxiliary contact
• Original manufacturer packaging

Applications

• Motor starters up to AC‑3 25 A at 400 V
• Control panels using 60 V DC control circuits
• Pumps, fans and conveyors within AC‑3 duty rating
• Resistive and general loads up to AC‑1 32 A

Safety note: Always isolate power before installation or maintenance. Wire to applicable standards and tighten terminals to the specified torque (1.5–1.8 Nm). Installation should be performed by qualified personnel using appropriate PPE.
